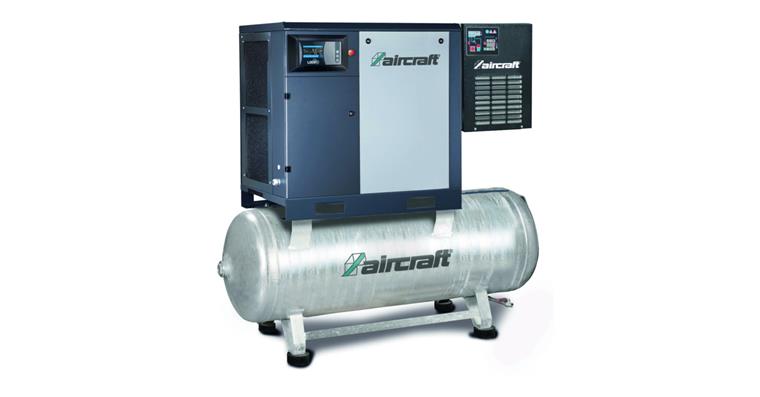

Screw compressor A-K-MAX 7.5-10-270 K

Screw compressor A-K-MAX 7.5-10-270 K

Screw compressor A-K-MAX 7.5-10-270 K
Item no: 1092408 301

Online price:

Availability on demand

Execution
  • Innovative LOGIN control with 4.3 inch touchscreen for ease of use and full control of all functions
  • Up to eight compressors can be connected, with either constant or variable speed
  • All information on the current operating status at a glance
  • Direction of rotation control in the motor prevents damage during commissioning or after a change of location
  • Extremely low screw compressor speed and use of a low-noise radial fan result in low noise emissions (only max. 67 dB) during operation
  • Optimal operating temperature and low fluctuation in oil temperature thanks to thermostatically controlled radial fan, optimised cooling air flow and generously dimensioned heat exchanger
  • After-cooler reduces the effort required for drying and filtering the compressed air produced
  • With star-delta switching as standard
  • Easy to service: simple removal and installation of all components requiring maintenance


Brand: AIRCRAFT
Tank capacity: 270 l
Power input: 7,5 kW
Max. rotation speed: 3000 rpm
Sound-pressure level: 62 dB
Length x width x height: 1200 x 680 x 1540 mm
Weight: 280 kg
Type: A-K-MAX 7.5-10-270 K (IE3)
Delivery quantity effective at 80% max. pressure: 1050 l/min
Frequency: 50 Hz
Max. pressure: 10 bar
Nominal voltage: 400 V

Manufacturer part no.: 2095464.2

EAN no.: 4036351333128

Product Datasheet
