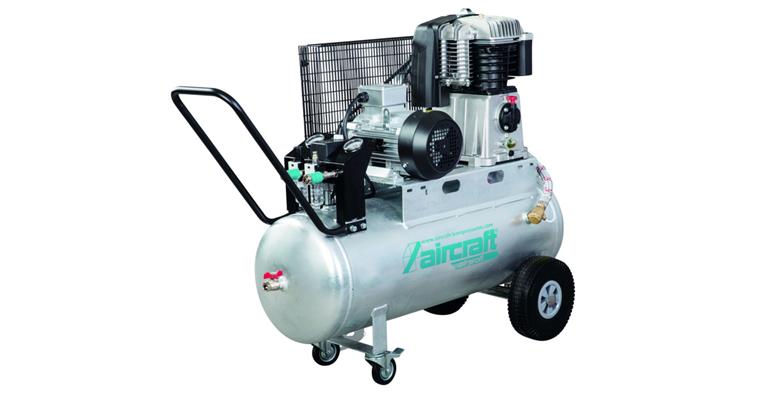

Compressor AIRPROFI 703/100 P

Compressor AIRPROFI 703/100 P

Compressor AIRPROFI 703/100 P
Item no: 1092406 302

Online price:

Availability on demand

Execution
  • Quality electric motor with high starting torque and equipped with a motor protection switch
  • Starting capacitor and starting release valve ensure gentle startup
  • With phase inverter as standard for manually reversing the direction of rotation with ease
  • The grey cast iron two-cylinder high-performance unit and the low speed guarantee particularly smooth and low-vibration running and a long service life
  • High-quality compressor with optimised lubrication for a long service life and high level of reliability
  • The after-cooler with large cooling fins ensures a low tank inlet temperature and therefore less moisture in the compressed air, which preserves the pneumatic tools
  • Ergonomically extended handle for comfortable transport in an almost completely upright position - prevents back strain caused by lifting

Advantage
  • Fully automatic switching on/off
  • Comprehensive safety features
  • Fully ready for connection


Brand: AIRCRAFT
Intake air capacity: 650 l/min
Tank capacity: 100 l
Power input: 4,81 kW
Sound-pressure level: 93 dB
Length x width x height: 1275 x 480 x 1015 mm
Weight: 99 kg
Type: AIRPROFI 703/100 P
Delivery quantity effective at 80% max. pressure: 520 l/min
Frequency: 50 Hz
Max. pressure: 10 bar
Nominal voltage: 400 V
Number of cylinders: 2 PCS
Power output: 4 kW

Manufacturer part no.: 2018731.2

Product Datasheet
