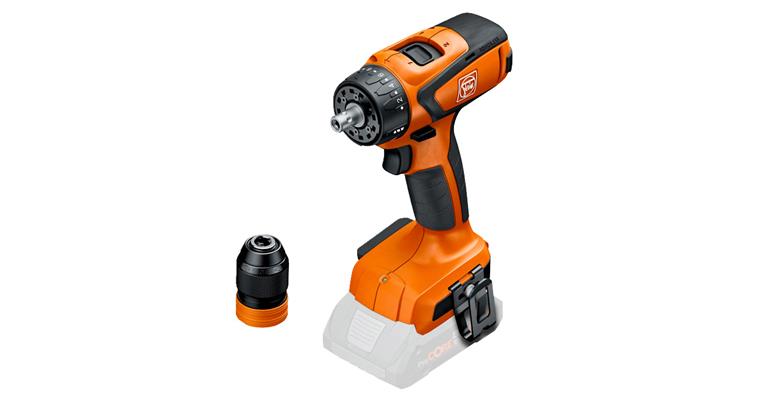

4-Gang Akku-Bohrschrauber ASCM 18 QSW AS

4-Gang Akku-Bohrschrauber ASCM 18 QSW AS

4-Gang Akku-Bohrschrauber ASCM 18 QSW AS
Item no: 1090811 600

Online price:

Available for immediate delivery

Application
Kleiner und leichter 4-Gang Akku-Bohrschrauber mit bürstenlosem Motor und QuickIN Schnittstelle. Perfekt geeignet für universelles Bohren und Schrauben.

Execution
  • Solid-metal 4-speed gearbox for optimum cutting speeds for drilling in metal and self-drilling screws up to 6 mm
  • The widest range of applications with the FEIN QuickIN system
  • Work faster in metal and wood with just one power tool
  • With a compact and lightweight design of 1.3 kg, the ASCM 18 QSW is the lightest 4-speed drill/driver in its sector
  • Brushless FEIN PowerDrive motor with 30 % higher efficiency and longer service life
  • QuickIN solid-metal drill chuck (120 Nm) with carbide-tipped clamping jaws and high clamping forces
  • Mechanical torque adjustment
  • The AMPShare interface delivers almost 100 % more screw connections
  • 1,100 (dia. 5 x 40 mm in wood) per battery charge with the same level of FEIN quality
  • (ProCORE 4 Ah)

Advantage
  • Kompatibel mit Bosch Professional 18 V Akkus seit 2008 und AMPShare Akkus.
  • Die AMPShare Schnittstelle ermöglicht fast 50 % mehr Verschraubungen (ca. 1 300 Verschraubungen Ø 5 x 40 mm in Holz) pro Akku-Ladung bei bestehender FEIN Qualität. (ProCORE 4 Ah).
  • Maximaler Arbeitsfortschritt mit AMPShare 18 V ProCORE Akkus: COOLPACK 2.0-Technologie sorgt für eine um 135 % längere Akkulebensdauer. Modernste Zelltechnologie und intelligentes Akku-Management sorgen für 87 % mehr Leistung als bei konventionellen Akkus. „Electronic Cell Protection" ECP schützt den Akku vor Überlastung, Überhitzung und Tiefentladung.

Delivery
Akku-Bohrschrauber
QuickIN Bohrfutter (120 Nm)
Gürtel-Clip
Bitgarage
Kunststoff-Werkzeugkoffer (L-BOXX 136)


Brand: FEIN
Max. torque: 40 Nm
Torque levels: 20+1
Tool holding device: QuickIN
Battery included in delivery: No
Battery voltage: 18 V
Max. idle speed: 2500 rpm
Motor design: Brushless motor
Max. drilling diameter in steel: 13 mm
Max. thread-cutting performance: M8
Weight: 0,99 kg
Min./max. drill chuck span width: 1.5-13 mm
Screw diameter x screw length: 8 x 200 mm
With disc brake: Yes
With overload protection: Yes
With restart protection: Yes
Max. torque hard/soft: 40 / 30 Nm
Sound-pressure level: 80,3 dB
Noise level: 88,3 dB
Max. drilling diameter in wood: 40 mm
Idle speed 1st gear min./max.: 0-400 U/min(rpm)
Idle speed 2nd gear min./max.: 0-700 U/min(rpm)
Idle speed 3rd gear min./max.: 0-1400 U/min(rpm)
Idle speed 4th gear min./max.: 0-2500 U/min(rpm)
Type: ASCM 18 QSW AS

Manufacturer part no.: 71161461000

EAN no.: 4014586898919
