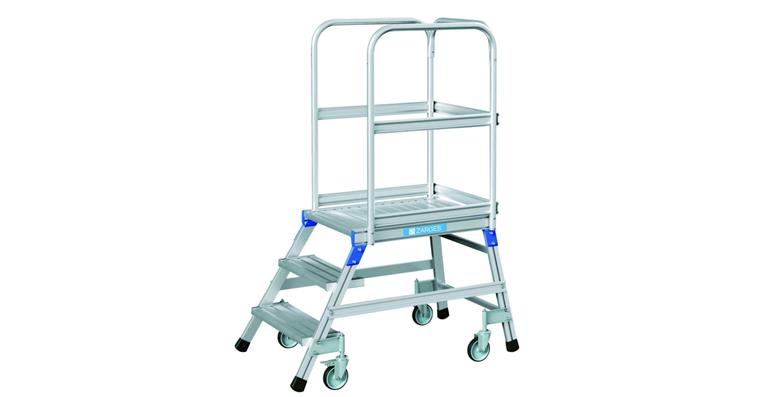

Mobile platform steps, accessible from one side, 3 steps, platform height 0.72 m

Mobile platform steps, accessible from one side, 3 steps, platform height 0.72 m

Mobile platform steps, accessible from one side, 3 steps, platform height 0.72 m
Item no: 1085873 101

Online price:

Availability on demand

Execution
  • Light metal rungs
  • Comfortable ascent with 200 mm deep rungs
  • 60° incline
  • Step spacing 240 mm
  • Plastic end caps on the side rail ends
  • Large standing platform 600 mm x 800 mm
  • 10-year ZARGES warranty
  • Art. no. 1085873 101-106: Single-sided access
  • Art. no. 1085874 101-106: Double-sided access

Advantage
  • Easy and quick installation due to new connection elements made of aluminium extruded section profiles
  • Maximum safety thanks to platform rail 1.00 m high with foot and knee rails
  • Four suspension swivel castors, dia. 125 mm, incl. 2 with locking device for mobility and quick deployment

Delivery
Flat pack with easy-to-assemble components

Notes
Optional hand rail on both sides of steps in accordance with DIN EN 131-7 (see art. no. 1085875).

Brand: ZARGES
Podium height: 0,72 m
Number of steps (including platform): 1 x 3
Surface area: 0.77 x 1.27 m
Weight: 28,5 kg
Podium surface: 0.8 x 0.6 m
Accessibility: One-sided
Material: Light metal
With Safer Step technology: 0 - not applicable
Step depth: 200 mm
Load-carrying capacity: 150 kg
Folding: No
On castors: Yes
Number of steering rollers: 4 PCS
Wheel diameter: 125 mm
Podium depth: 0,6 m
Podium width: 0,8 m
EN standard: 131
With wheel lock: Yes

Manufacturer part no.: 4003866419715

EAN no.: 4003866419715

Product Datasheet
