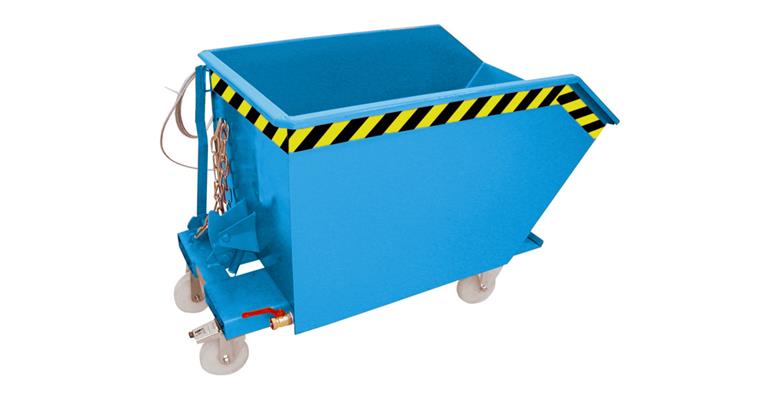

Chip container cap. 0.75 m³ LxWxH 1440x1280x680 mm RAL 5012 load cap. 1000 kg

Chip container cap. 0.75 m³ LxWxH 1440x1280x680 mm RAL 5012 load cap. 1000 kg

Chip container cap. 0.75 m³ LxWxH 1440x1280x680 mm RAL 5012 load cap. 1000 kg
Item no: 1085591 103

Online price:

Availability on demand

Application
Especially for collecting and separating liquids from solids

Execution
  • Can be tilted at any height using a wire rope hoist from the forklift seat
  • 1 inch drain valve for draining off liquids
  • Sheet metal tray with surrounding edge profile
  • Sturdy base frame with fork pockets
  • Oil-tight and watertight
  • Protection against accidental slipping and tipping
  • Standard colour: Surface painted in RAL 5012 light blue
  • Other paint finishes available at no extra cost (not stocked): RAL 2000 orange yellow, RAL 3000 flame red, RAL 6011 reseda green, RAL 7005 mouse grey
  • Art. no. 1085591 099-100: Screen plate in tray corner area
  • Art. no. 1085591 101-105: Continuous perforated metal plate 100 mm above the tray shelf, hole dia. 3 mm, spacing 6 mm

Delivery
Without rolls

Notes
Castors and fixed castors, see art. no. 1085591 200-201.

Brand: BAUER SÜDLOHN
Fork pocket clearance (Einfahr-Tasche Abstand (A)): 495 mm
Load-carrying capacity: 1000 kg
Fork pocket height (Einfahr-Tasche Höhe (C)): 60 mm
Fork pocket width (Einfahr-Tasche Breite (B)): 200 mm
Volume: 0,75 m³
Length x width x height: 1440 x 1280 x 680 mm
Length: 1440 mm
Width: 1280 mm
Height: 680 mm
Fork pocket size (W x H): 200 x 60 mm
With drain valve: Yes
With stacker seat tilt function: Yes
With perforated sheet: No
Surface: Lacquered
Colour: Light blue RAL 5012
Weight: 169 kg

Manufacturer part no.: SGU 75 LACK. BLAU RAL 5012

EAN no.: 4024496126828

Product Datasheet
