Pallets shelf frame Multipal 85/20 H=5500 mm D=800 mm

Pallets shelf frame Multipal 85/20 H=5500 mm D=800 mm

Pallets shelf frame Multipal 85/20 H=5500 mm D=800 mm
Item no: 1085555 104

Online price:

Availability on demand

Execution
  • Selection of stands/struts: 1. Determine load capacity per bay 2. Calculate load capacity per bay 3. Select struts based on load capacity per bay 4. Select stand based on load capacity per bay and shelf height
  • Safety instructions: Load dimensions may exceed nominal dimensions! Lift height for handling equipment: Upper edge of topmost strut plus 200 mm. The bay load data provided are for units consisting of one basic bay and at least three add-on bays and have at least three pairs of struts per bay.
  • SR 85/20 planning dimensions: Basic shelf = nominal length + 170 mm, add-on shelf = nominal length + 85 mm


Brand: META
Stand type: MSM 85/20

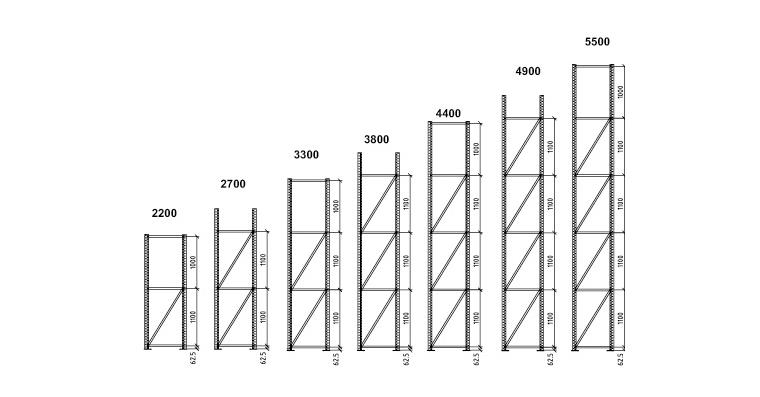

Height: 5500 mm
Depth: 800 mm
Material: Sheet steel
Surface: Zinc plated

Manufacturer part no.: 20076040

EAN no.: 4026212124460

Product Datasheet
