LIZZARD Schubladenschrank 6 Schubladen B700xT575xH1020mm RAL7016/7035

LIZZARD Schubladenschrank 6 Schubladen B700xT575xH1020mm RAL7016/7035

LIZZARD Schubladenschrank 6 Schubladen B700xT575xH1020mm RAL7016/7035
Item no: 1084460 103

Online price:

Availability on demand

Execution
  • Welded sheet steel construction
  • Powder-coated housing, zinc-plated drawers
  • 100 % drawer pull-out
  • Single pull-out lock for drawers
  • Drawer guides are ball bearing-mounted
  • Zinc-plated drawers with smooth sidewalls
  • Drawer panel height 50 mm: Load capacity: 30 kg
  • Drawer panel height from 75 mm: Load capacity: 80 kg
  • Central locking
  • Handle strips with inserted labelling strips

Advantage
  • For increased protection against tipping, only one drawer can be opened at a time
  • Extensive dividing material suitable for all drawer variants available as accessories
  • Environmentally friendly powder coating
  • Our cabinets are made of strong sheet steel and have additionally reinforced frames to withstand loads of up to one ton

Notes
To order customised hard foam inserts suitable for this drawer series, please use the following clear internal dimensions: Width 600 mm, depth 450 mm.

Brand: LIZZARD
Cabinet colour: Anthracite grey RAL 7016
Colour of front: Light grey RAL 7035
Height: 1020 mm
Width: 700 mm
Depth: 575 mm
Number of drawers: 6 PCS
Drawer front height: 2 x 100 mm | 2 x 150 mm | 2 x 200 mm
Pullout type: Full extension
With single pull-out safety brake: Yes
Central locking: Yes
Material: Sheet steel
Surface: Powder-coated
Clear height: 900 mm
Drawer width (inner dimension): 600 mm
Drawer depth (inner dimension): 450 mm
Opening/closing system: Key Lock
Lock type: Cylinder lock
With cover panel: No

Additional articles

Please select a button.

Accessories
Versions
loading
Keywords:

You might also be interested in this

  • LIZZARD Schubladenschrank 6 Schubladen B900xT575xH1020mm RAL7016/7035
  •
    ATORN vice stand size 1 + 2 steel for vices 30380118 + 30380119
  •
    VDE-Elektriker-Kreuzschlitz-Schlitz-Schraubendr. 3-Komponenten-Griff PZ 1x80 mm
    14,04 €
  • LIZZARD Schubladenschrank 6 Schubladen B600xT575xH1020mm RAL7016/7035
  •
    LIZZARD Schubladenschrank 7 Schubladen B900xT575xH1020mm RAL7016/7035
  •
    Nut holder height x width x depth 30x390x45 mm for 12 nuts aluminium-coloured
  •
    ATORN burs HSS shape DIN M 0618.06 cut 2
  •
    ATORN TC stone drill bit with straight shank T=2 5x50x95 mm
  •

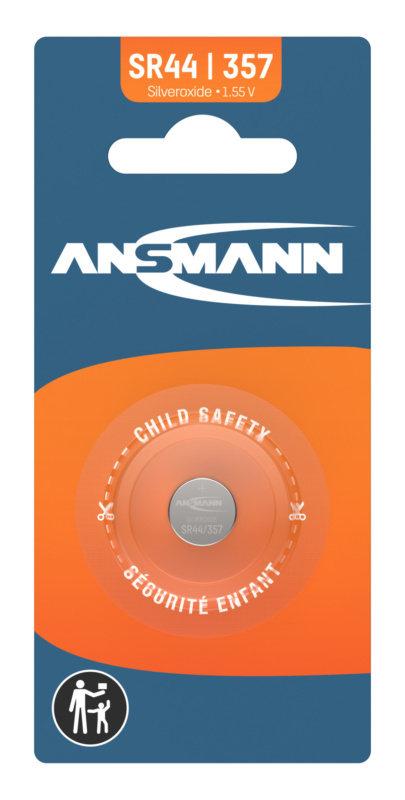

    Silberoxid Knopfzelle SR44 Pack = 1 Stück
  •
