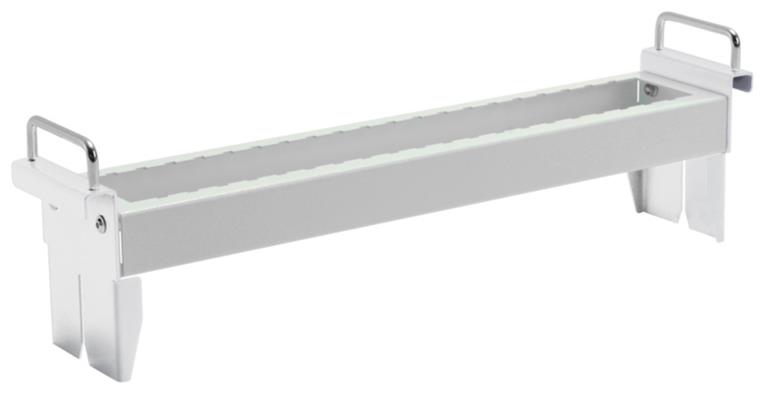

CNC tool holder support 180x620x120mm sheet steel RAL 7035 without inserts

CNC tool holder support 180x620x120mm sheet steel RAL 7035 without inserts

CNC tool holder support 180x620x120mm sheet steel RAL 7035 without inserts
Item no: 1083950 601

Online price:

Availability on demand

Application
Individually configurable with CNC inserts art. no. 1083945101-603

Advantage
Individually configurable with CNC plastic inserts

Delivery
Without plastic inserts (art. no. 1083945).


Brand: BEDRUNKA HIRTH
Width: 620 mm
Max. number of tool inserts: 10 PCS
Height: 180 mm
Depth: 120 mm
Colour: Light grey RAL 7035
Design: Empty
Extendible: No
Material: Sheet steel
Surface: Powder-coated
Width x depth: 620 x 120 mm
Width x height x depth: 620 x 180 x 120 mm

Manufacturer part no.: 02.8707.100 RAL 7035

EAN no.: 4024496118014
