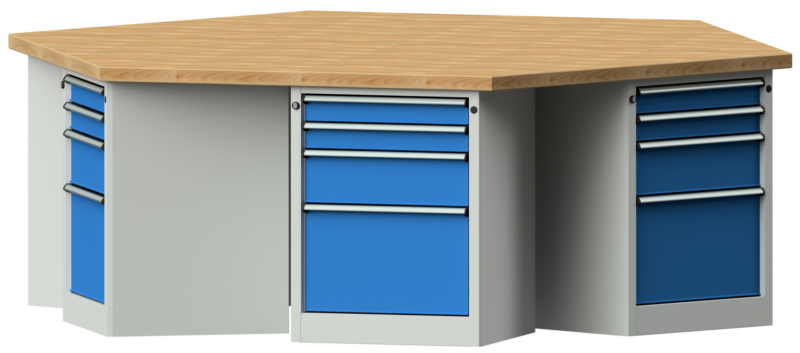

Hexagonal workbench beech multiplex 50mm 6 drawers RAL 5012

Hexagonal workbench beech multiplex 50mm 6 drawers RAL 5012

Hexagonal workbench beech multiplex 50mm 6 drawers RAL 5012
Item no: 1082290 506

Online price:

Availability on demand

Execution
  • 6 drawer cabinets each with 2 drawers, panel height 1x 60, 3x90 mm, 1x180 mm and 1x210 mm, per workstation
  • Worktop: Made of beech multiplex, distortion-resistant, waterproof, bonded
  • Supplied in 2 parts, joined edge to edge with tongue and groove and Lamello screw joint
  • Drawer cabinet: 800 x 572 x 600 mm, made from sturdy sheet steel
  • Drawers with extension stop
  • Interior slotted strips and perforated base for variable division
  • For usable surface areas and division material, see art. no. 1082345
  • Space between the cabinets is covered by sheet metal
  • Total height of the workbench without power supply panel, 840 mm with 40 mm worktop and 850 mm with 50 mm worktop

Advantage
  • This workbench version allows you to configure effective workstations for training institutions
  • Each workbench provides 6 workstations

Delivery
Scope of delivery: without assembly

Notes
Other combinations of drawers, drawer cabinets with full-extension slides, octagonal design and power supply panel available on request.
Other paint finishes in RAL 3020, 5010 and 7016 available at no extra cost.

Brand: DRINGENBERG
Design: Hexagon
Material of worktop: Multiplex birch
Working height: 840 mm
Plate width: 2500 mm
Plate depth: 850 mm
Plate thickness: 50 mm
Load-carrying capacity: 1000 kg
Number of drawers: 6 PCS
Drawer front height: 1 x 60 mm | 3 x 90 mm | 1 x 180 mm | 1 x 210 mm
Drawer width (inner dimension): 450 mm
Drawer depth (inner dimension): 525 mm
Load-carrying capacity per drawer: 60 kg
Pullout type: Partial extension, 85% roller bearings
With single pull-out safety brake: Yes
Lock type: Cylinder lock
Central locking: Yes
Secondary locking: No
Cabinet colour: Light grey RAL 7035
Colour of front: Light blue RAL 5012
Surface: Powder-coated

Manufacturer part no.: 82 290 506

EAN no.: 4024496114948
