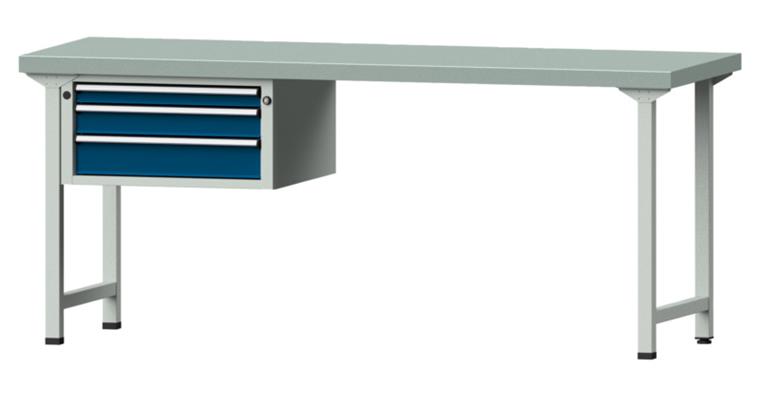

Combination workbench 2000x700x850mm model 522V pl. w/ sh. st coat. RAL7035/5010

Combination workbench 2000x700x850mm model 522V pl. w/ sh. st coat. RAL7035/5010

Combination workbench 2000x700x850mm model 522V pl. w/ sh. st coat. RAL7035/5010
Item no: 1082078 405

Online price:

Availability on demand

Execution
  • Worktop: solid beech (BMP), universal (UBP) or sheet steel (ZBP)
  • Housing in robust welded sheet steel construction
  • Useful height as a suspended undercounter cabinet 270 mm (= clear internal dimension)
  • Base frames made from square steel tube 45x45x2 mm, 1x with level compensation
  • High-quality aluminium handle strip with labelling tabs
  • Central locking: DOM interchangeable cylinder
  • Lock is master-key-compatible
  • When creating locking systems, the standard locking core can simply be replaced with a locking-system-compatible locking core
  • Other colours available on request for a surcharge

Advantage
  • Worktop in solid beech (BMP): Oiled surface, can be repeatedly sanded down, extremely long service life, robust and highly resilient thanks to special and unique strip bonding: Strips interlocked and bonded lengthways with approximately 60 % greater glue surface to ensure optimum cross-bracing and load values
  • Universal worktop (UBP) with ABS edge: Abrasion-resistant and anti-static surface, short-term resistance to weak acids and alkalis and exposure to heat up to approx. 250°C
  • Worktop with zinc-plated sheet steel surface (ZBP): Sheet metal thickness 1.5 mm, easy-care and therefore ideal for working with oiling, hot-dip galvanised, corrosion-resistant for long periods, sheet steel is flanged around the edges on all sides
  • TÜV/GS tested

Delivery
Anlieferung fertig montiert

Notes
To order customised hard foam inserts, please use the following clear internal dimensions: WxD 490 mm x 530 mm. Load values always apply to evenly distributed surface loads.

Brand: ANKE
Material of worktop: Zinc sheet covering
Working height: 850 mm
Load-carrying capacity: 800 kg
Plate width: 2000 mm
Plate depth: 700 mm
Plate thickness: 50 mm
Number of drawers: 3 PCS
Drawer front height: 1 x 120 mm | 1 x 90 mm | 1 x 60 mm
Drawer width (inner dimension): 500 mm
Drawer depth (inner dimension): 540 mm
Drawer surface: 0,27 m²
Load-carrying capacity per drawer: 100 kg
Pullout type: Full extension
With single pull-out safety brake: Yes
Lock type: DOM® locking system
Central locking: Yes
Adjustable in height: No
Levelling: Yes
Cabinet colour: Light grey RAL 7035
Colour of front: Gentian blue RAL 5010
Material of base frame: Steel plate
Surface: Powder-coated

Manufacturer part no.: 522V

EAN no.: 4014641032852
