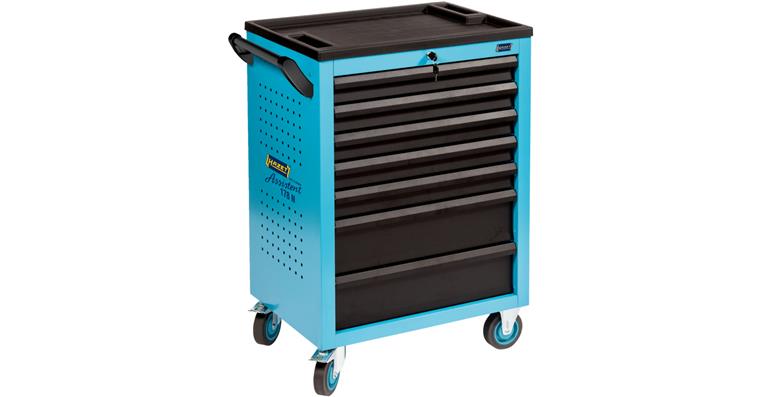

Workshop trolley assistant 178N-7 LxHxW 780x1035x498 mm unequipped
Item no: 1081728 201
Online price:
Catalogue price:
You save:
Availability on demand
Min. order quantity: 1
Description
Execution- 7 drawers (5 shallow and 2 deep). Shallow drawers: 5x 80x527x348 mm. Deep drawers: 2x 165x527x348 mm
- Drawer size for organisation system/modules: 3/3
- Robust steering handle permanently mounted on the body
- 2-step locking concept: Central locking, locked by cylinder lock with 2 articulated keys. Individual locking prevents accidental opening
- 100 % extension with roller guide
- Number of fixed castors: 2 (dia. 125 mm), number of swivel castors: 2 (dia. 125 mm)
- With thread guard - Protects the bearings against dirt and threads
- Grey, trackless elastic castors run smoothly
- Worktop: Plastic, solvent-resistant, with integrated storage compartments
- Colour: HAZET BLUE
Advantage- Large ball-bearing-mounted wheels, easy movement even with high dynamic loads
- Individual fastening options with rectangular hole grid on the sidewalls for can holders, paper roll holders, paper baskets etc.
DeliveryTools not included.
NotesFor suitable add-on case, see art. no. 1081728 202.
Technical data
Brand: HAZET
Number of drawers: 7 PCS
Cabinet colour: Blue
Colour of front: Black
Height x width x depth: 1037 x 781 x 498 mm
Drawer front height: 5 x 80 mm | 2 x 165 mm
Load-carrying capacity per drawer: 20 kg
Drawer depth (inner dimension): 348 mm
Drawer width (inner dimension): 527 mm
Pullout type: Full extension
With single pull-out safety brake: Yes
With single-locking drawers: Yes
With SOFT-CLOSE closing function: No
Load-carrying capacity: 480 kg
Central locking: Yes
Lock type: Cylinder lock
Punched-hole: 10 x 10 mm
With edge protection: No
With sliding handle: Yes
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
With wheel lock: Yes
Material of wheel: TPE
Wheel diameter: 125 mm
Material of worktop: Plastic
Material: Sheet steel
Surface: Powder-coated
More details
Manufacturer part no.:
4000896202782
EAN no.: 4000896202782
Product Datasheet
