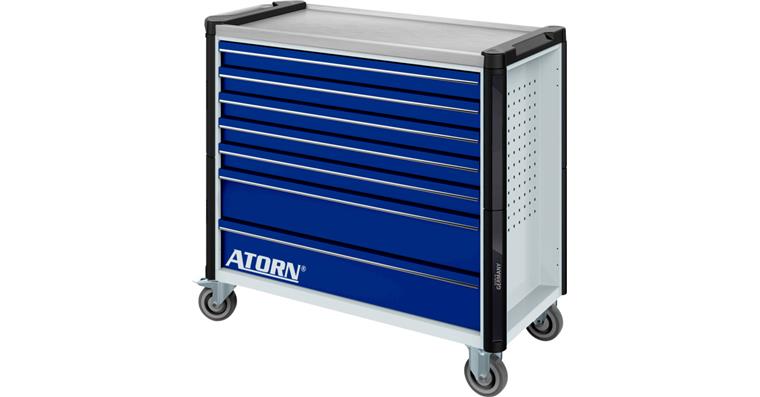

ATORN tool trolley XXL w. individual drawer extension lock 5 x 80 mm:2 x 165 mm

Version

Item no: 1081725 301

Online price:
Catalogue price:

You save:

Will be ordered for you

Add to watch list

Quantity

Min. order quantity: 1

Add to basket

Description

Execution

Extremely robust design due to double-walled construction, completely welded construction of the entire body for daily rigorous use in the workshop
Plastic worktop, solvent-resistant, with integrated storage compartments
drawers with integrated self-closing mechanism and SOFT-CLOSE
Impact protection at all four corners of the vehicle
2-stage locking concept:
Central locking via cylinder lock with 2 hinged keys
Individual locks for each of the drawers integrated into the drawer front plate
Mutual drawer lock, minimises the risk of overturning
4 ball-bearing wheels, diameter 125 mm, 2 of which are steering rollers with brakes; all wheels with thread guards which protect the bearings from dirt and threads

Advantage

High-quality chassis
inserted side walls protect the additionally attached add-on parts from damages, since they are within the carriage dimensions
Individual fastening options thanks to rectangular hole grid on the side walls, e. g. with hooks for tools or other attachments (can holder, paper roll holder, waste basket, etc.)

Technical data

Brand: ATORN
Height: 1020 mm
Width: 1133 mm
Depth: 518 mm
Number of drawers: 7 PCS
Drawer front height: 5 x 80 mm | 2 x 165 mm
Drawer width (inner dimension): 871 mm
Drawer depth (inner dimension): 398 mm
Load-carrying capacity per drawer: 40 kg
Pullout type: Full extension
With single pull-out safety brake: Yes
With single-locking drawers: Yes
With SOFT-CLOSE closing function: Yes
Load-carrying capacity: 1000 kg
Central locking: Yes
Lock type: Cylinder lock
Punched-hole, sidewall: Yes
Punched-hole: 10 x 10 mm
With edge protection: Yes
With sliding handle: Yes
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
With wheel lock: Yes
Material of wheel: Solid rubber
Wheel diameter: 125 mm
Material of worktop: Stainless steel
Material: Sheet steel
Surface: Powder-coated
