Handling lifting table HTH 30-800 lifting load 3000 kg

Handling lifting table HTH 30-800 lifting load 3000 kg

Handling lifting table HTH 30-800 lifting load 3000 kg
Item no: 1081526 103

Online price:

Availability on demand

Application
For assembly, packaging and maintenance work. Indoor operation.

Execution
  • Single-scissor construction for evenly distributed loads
  • Smooth, sheet-steel platform
  • Controller between the scissors operated from a pendant station
  • Maintenance supports
  • Circumferential contact strip
  • Line-break safety device
  • Lowering brake valve
  • Operating voltage of 400V - 50 Hz
  • Indoor ambient temperature range of 0°C to +40°C
  • DIN EN 1570-1, EC Machinery Directive 2006/42/EC

Advantage
  • Ergonomic workstations
  • Height-adjustable platform

Notes
Further details can be found in our webshop (art. no. 1081527 and 1081528).

Brand: PFAFF
Max. table height: 800 mm
Min. table height: 220 mm
Load-carrying capacity: 3,0 t
Power rating: 1,5 kW
Construction height: 220 mm
Shear design: Single
Design: Stationary
Length: 1300 mm
Lift height: 800 mm
Stroke mechanism: Electric
Width: 800 mm
Platform length: 1300 mm
Platform width: 800 mm
Weight: 320 kg

Manufacturer part no.: 40049473

EAN no.: 4050939066239

Product Datasheet
Additional articles

Please select a button.

Similar product
Versions
loading
Keywords:

[Text nicht gefunden]

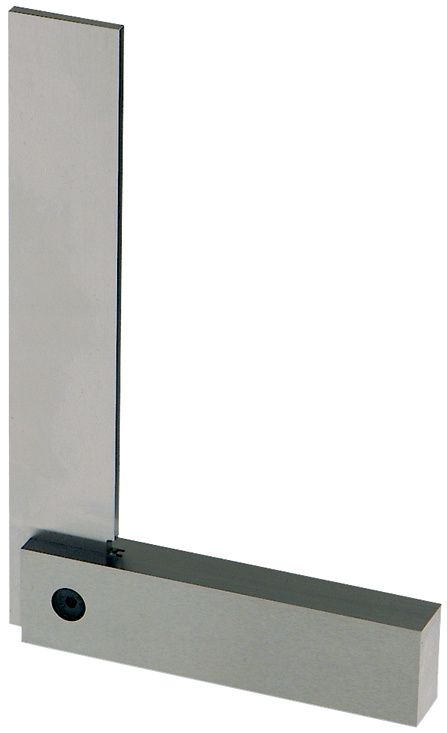

  • ATORN try square hardened 200 x 130 mm DIN 875 precision 0
  •
