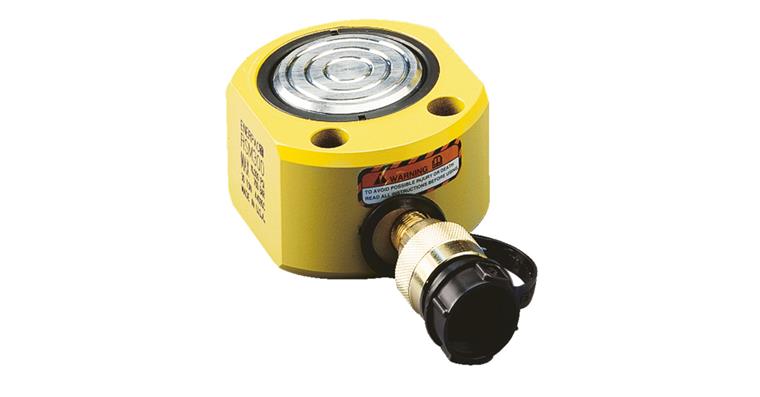

Short-stroke cylinder 45 t single-acting max. 700 bar type RSM-500

Short-stroke cylinder 45 t single-acting max. 700 bar type RSM-500

Short-stroke cylinder 45 t single-acting max. 700 bar type RSM-500
Item no: 1080630 104

Online price:

Available in 8-10 working days.

Application
Compact flat design for use where other cylinders are too large

Execution
  • Single-acting
  • Max. operating pressure 700 bar
  • Pistons made from hard-chrome-plated, quality steel
  • Coupling sleeve with dust cap

Advantage
Grooved piston end pieces mean that pressure pieces are not necessary


Brand: ENERPAC
Model: RSM 500
Max. compressive force: 435 kN
Lift height: 16 mm
Oil capacity: 99 cm³
Construction height, retracted: 66 mm
Construction height, extended: 82 mm
Effective piston area: 62,1 cm²
Max. operating pressure: 700 bar

Manufacturer part no.: RSM 500

Product Datasheet
