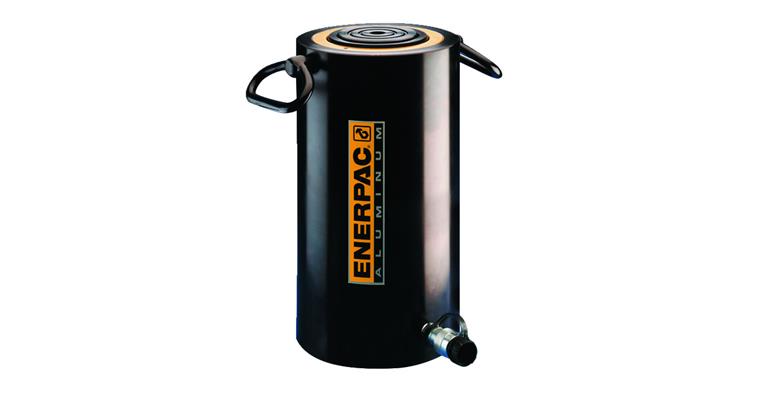

Aluminium cylinder type RAC-1004, cyl. ty,: 100 t, max. operating press.: 700bar

Aluminium cylinder type RAC-1004, cyl. ty,: 100 t, max. operating press.: 700bar

Aluminium cylinder type RAC-1004, cyl. ty,: 100 t, max. operating press.: 700bar
Item no: 1080610 104

Online price:

Available in 8-10 working days.

Execution
  • Single-acting
  • Max. operating pressure 700 bar. . . .
  • Pistons and housings made from aluminium with hardened surface coating
  • With interchangeable pressure piece, powerful retraction spring and steel base plate
  • Coupling sleeve and dust cap
  • Handles as standard


Brand: ENERPAC
Model: RAC 1004
Max. compressive force: 1002 kN
Lift height: 100 mm
Oil capacity: 1431 cm³
Construction height, retracted: 271 mm
Weight: 19,6 kg
Effective piston area: 143,1 cm²
Max. operating pressure: 700 bar

Manufacturer part no.: RAC 1004

Product Datasheet
