Multi-purpose cylinder 5 t single-acting max. 700 bar type RC 51

Multi-purpose cylinder 5 t single-acting max. 700 bar type RC 51

Multi-purpose cylinder 5 t single-acting max. 700 bar type RC 51
Item no: 1080600 101

Online price:

Available in 8-10 working days.

Execution
  • Single-acting
  • Max. operating pressure 700 bar
  • Pistons made from hard-chrome-plated, quality steel
  • With replaceable, grooved pressure piece, powerful retraction spring, wiper ring
  • Male thread on the cylinder head, piston rod internal thread and mounting thread on the cylinder bottom
  • Coupling sleeve with dust cap


Brand: ENERPAC
Model: RC 51
Max. compressive force: 45 kN
Lift height: 25 mm
Oil capacity: 16 cm³
Construction height, retracted: 110 mm
Weight: 1,0 kg
Effective piston area: 6,5 cm²
Max. operating pressure: 700 bar

Manufacturer part no.: RC 51

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Telescopic cylinder RLT-110 single-acting 11.4 t stroke
  •
    Ultrasonic cleaning concentrate Elma Tec Clean A3 contents 10.0 litres
    165,08 €
  • ATORN test pin RSB TC1 5.08 mm x 70 mm
    15,92 €
  • Pin punch with guide sleeve, extra-steel tip dia. 3.9 mm, overall length 100 mm
  •
    ATORN centre drill with radius, HSS form R, 1.25 mm x 3.15 mm x 31.5 mm
    4,70 €
  • Multi-purpose cylinder 10 t single-acting max. 700 bar type RC 106
  •
    Multi-purpose cylinder 10 t single-acting max. 700 bar type RC 108
  •
    Ultrasonic cleaning concentrate Elma Tec Clean A4 contents 10.0 litres
  •

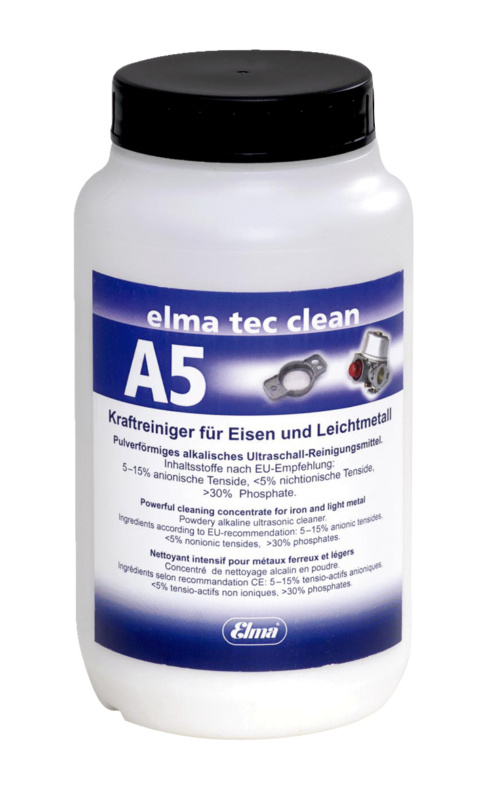

    Ultrasonic cleaning concentrate Elma Tec Clean A5, contents 850 g
  •
