ALFRA - Permanent lifting magnet TML 90 R prism, load 90 kg tear-off force 270 kg

Application
Ideal work assistance e.g. for plate levelling, platform construction, fixing and clamping of any kind! The specially aligned magnetic field (patented) enables welding approx. only 15 mm from the outside of the magnet.

Execution

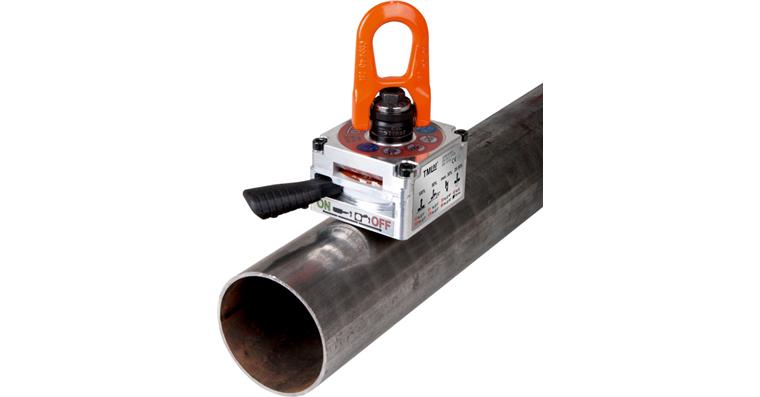

With prism for tubes and curved surfaces
Lifts tubes from 25 mm to 200 mm in diameter
Tearing force 300 kg (from 6 mm sheet metal S 235)
Max. load for vertical lifting 30 kg at 90° (1:3 safety factor)
Max. lifting force of 50 kg at 3 mm material thickness and 100 kg lifting force from 6 mm (plus 3-fold safety factor)
Max. load capacity for round tubing: 20-50% of the flat material, depending on tube diameter and material thickness
Twist stop can be rotated and swivelled through 360° (even under full load)
Ergonomic and easy one-handed activation
Hardened steel bottom with TiN coating for a long service life, while also ensuring a small air gap to prevent damage to the bottom

Advantage

Outstanding performance on thin-walled materials (can be used from 1 mm)
Incredible shear force for a better grip, including for vertical applications

Notes
Pre-tension of the magnets
This is a reduced magnetic field that the magnet radiates, even when it is not activated. This pre-tension makes it possible to attach and position the magnet on a vertical surface or overhead, without it falling. The magnetic force is sufficient to bear the tare weight of the magnet. Consequently, the magnet can be moved into a perfect position for an optimal lifting process before the locking lever is pushed down. The locking mechanism of the magnet is optimised so that one-hand operation is possible.
