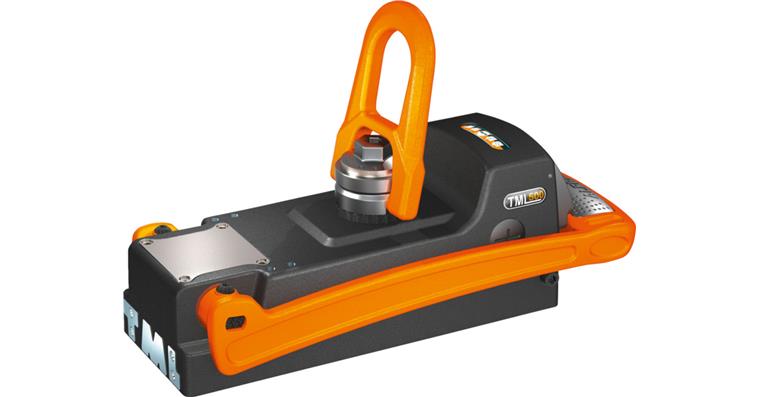

ALFRA - Permanent lifting magnet, max. load 500 kg, weight 7.3 kg

Execution

Max. load up to 500 kg (3:1 safety factor)
Max. load for vertical lifting 150 kg at 90° (from 15 mm S 235 with 3:1 safety factor)
300 kg lifting force from 5 mm material thickness
490 kg lifting force from 10 mm material thickness
Specified load plus 3-fold safety factor in the lifting operation i.e. the force to tear off the plate must correspond to three times the maximum lifting force
Twist stop can be rotated and swivelled through 360°
Hardened, TiN-coated magnetic surface

Advantage

Outstanding performance on thin-walled materials (can be used from 2 mm)
Up to 70% lower tare weight with at least equal performance when compared to conventional magnets
Ergonomic activation with minimal effort
Completely new operating concept enables greater action radius

Notes
Pre-tension of the magnets
This is a reduced magnetic field that the magnet radiates, even when it is not activated. This pre-tension makes it possible to attach and position the magnet on a vertical surface or overhead, without it falling. The magnetic force is sufficient to bear the tare weight of the magnet. Consequently, the magnet can be moved into a perfect position for an optimal lifting process before the locking lever is pushed down. The locking mechanism of the magnet is optimised so that one-hand operation is possible.

Permanent lifting magnet, max. load 500 kg, weight 7.3 kg

Permanent lifting magnet, max. load 500 kg, weight 7.3 kg
