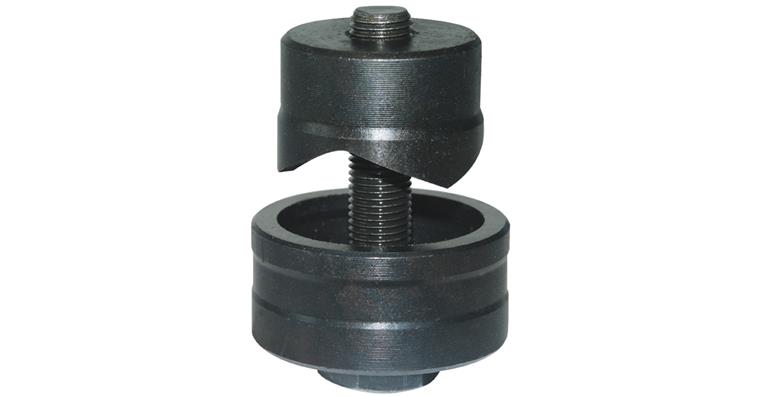

3-point hole puncher (screw hole puncher) diameter 22.5 mm PG 16

3-point hole puncher (screw hole puncher) diameter 22.5 mm PG 16

3-point hole puncher (screw hole puncher) diameter 22.5 mm PG 16
Item no: 1074333 112

Online price:

Available for immediate delivery

Application
For sheet thicknesses of 2 or 3 mm in ST37.
For punching holes in aluminium, copper, brass and iron sheets, plastics, hardboard, rubber, leather etc.
For manual and hydraulic actuation.

Execution
  • Precision design with 3-point support, which prevents the sheet from becoming deformed
  • Precise alignment with the cross line with the help of 4 notches on the die

Notes
For replacement draw bolts, see art. no. 1074334 101-104.

Brand: ALFRA
Diameter: 22,5 mm
Suitable for pipe (PG): PG 16
Screw diameter (Schrauben-Ø): 9,5 mm
Suitable for max. sheet metal thickness: 3 mm

Manufacturer part no.: 29021

EAN no.: 4030266290972

Product Datasheet
