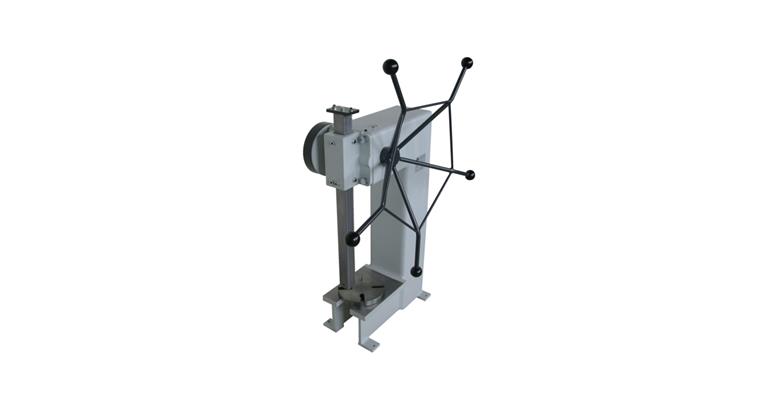

Mech. ass. + broach. press T5 50kN dia. 20 H7 spindle square 55 mm stroke 550 mm
Item no: 1072035 102
Price on demand
Description
Application
Especially suitable for efficiently and securely producing keyways using push-type broaching tools, but also for pressing in/out of bushings and bolts, as well as for installing pre-tensioned assemblies.
Execution
Very stable and torsion-resistant welded construction. The shape and profile have been designed in such a way that all operating loads are safely absorbed. The system is driven via a handwheel with 5 spokes that controls a planetary gear on the drive spindle. Thanks to the high transmission ratio, only a little effort on the handwheel is required. The guides of the square working spindle are equipped with adjustable bars. Paint light grey RAL 7035
Notes
Depth stop is deliverable with fine adjustment on request. For suitable push-type broaching tool, see art. no. 1016880 ff. For matching cabinet base, see art. no. 1072036. All machines are also available in special versions with a larger stroke and a larger installation space on request.
Technical data
Brand: ---
Compressive force: 50 kN
Table size: 250 x 350 mm
Weight: 195 kg
Table length: 350 mm
Table width: 250 mm
Type: T5
