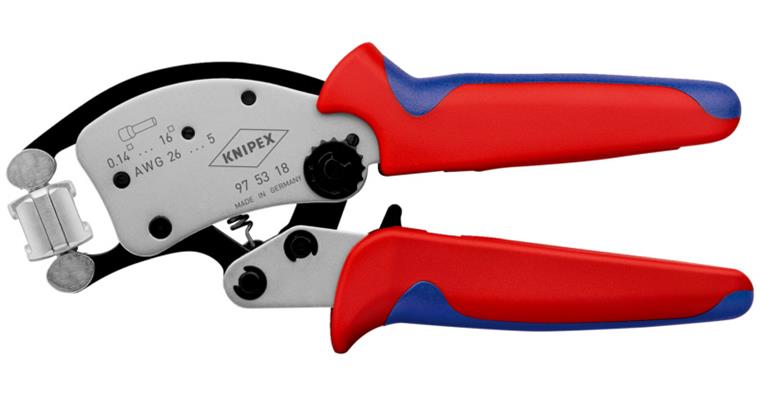

Crimping pliers Twistor 16 type 97 53 18

Crimping pliers Twistor 16 type 97 53 18

Crimping pliers Twistor 16 type 97 53 18
Item no: 1062741 101

Online price:

Available for immediate delivery

Application
For crimping wire end ferrules in accordance with DIN 46228 Parts 1 and 4. Twin wire end ferrules up to 2 x 6 mm² can also be crimped.

Execution
  • Square crimp profile, large cross-section range
  • From 0.14 to 16 mm²
  • Crimp insert can be rotated 360° with eight perceptible
  • locking positions
  • Slim head for optimum accessibility
  • Chrome-plated pliers
  • Consistently high crimping quality thanks to force stop function (can be unlocked)
  • Jointed lever mechanism for favourable force transmission ratios
  • Crimping pressure is precisely set (calibrated) at the factory and can be adjusted
  • Special-grade chromium-vanadium electrical steel, oil-hardened

Advantage
  • Self-adjusting to the desired wire end ferrule size, which prevents crimping errors caused by using the wrong crimping die or an incorrect setting
  • Lightweight, handy design for ease of use


Brand: KNIPEX
Type (Pressform): Twistor16
Length: 240 mm
Suitable for min./max. diameter: 0.14-16 mm
VDE certified: No
Material of handle: 2-component plastic

Manufacturer part no.: 97 53 18

EAN no.: 4003773082729

Product Datasheet
