Digital-Multimeter MM 2-1

Digital-Multimeter MM 2-1

Digital-Multimeter MM 2-1
Item no: 1062395 108

Online price:

Still in stock: 2

Application
True RMS digital multimeter - The new entry-level model for professional measuring

Execution
  • Measuring functions: True RMS voltage measurement (1,000 V), resistance measurement (60 MΩ), frequency measurement (50 kHz), rapid continuity testing (< 15 ms) with visual and acoustic display, diode testing, volt sensor function for contactless and single-pole phase testing (two sensitivity levels)
  • Performance features: Backlit digital display with 6,000 digit resolution, precise true RMS effective value measurement for measuring non-linear signals, MIN/MAX/AVG and relative value measurement (REL), display HOLD for storing the current reading, compact and ergonomic housing for one-handed operation, robust rubber protective frame for improved grip and impact resistance
  • Base accuracy: 0.2 %
  • Memory function: HOLD, MIN/MAX/AVG, REL

Delivery
1x digital multimeter with robust rubber protective frame
1x high-quality silicone measurement cables with 2 mm gold-plated measuring tip and 4 mm screw-on measuring tip
1x protective case
2x 1.5 V AAA/IEC LR03 batteries


Brand: BENNING
Min./max. test voltage (DC): 10 µV/DC-1000 V/DC
Min./max. test voltage (AC): 10 µV/AC-1000 V/AC
Continuity testing: Yes
Diode testing: Yes
Min./max. electrical-resistance measuring range: 0.1 Ohm-60 MOhm
Min./max. frequency: 0.01 / 1 kHz
Volt sensor: Yes
Measuring procedure: TRUE RMS
Overvoltage protection category: CAT III/1000 V | CAT IV/600 V
Max. frequency: 1 kHz
Min. frequency: 10 Hz
Max. alternating voltage of measuring range: 600 V/AC+DC
Max. test voltage (AC): 1000 V/AC
Max. test voltage (DC): 1000 V/DC
Min. alternating voltage of measuring range: 0,10 V/AC+DC
Min. test voltage (AC): 10 µV/AC
Min. test voltage (DC): 10 µV/DC
Min./max. alternating voltage of measuring range: 0.10-600 V/AC+DC

Manufacturer part no.: 044691

EAN no.: 4014651446915

Product Datasheet
Keywords:

[Text nicht gefunden]

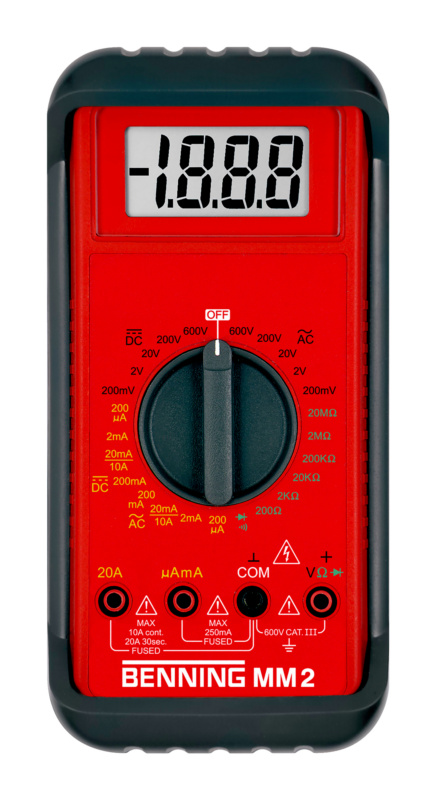

  • Digital-Multimeter MM 2
  •
    Digital-Multimeter MM 2-2
  •
    Digital-Multimeter MM 2-3
  •
    Digital-Multimeter MM 7-2
  •

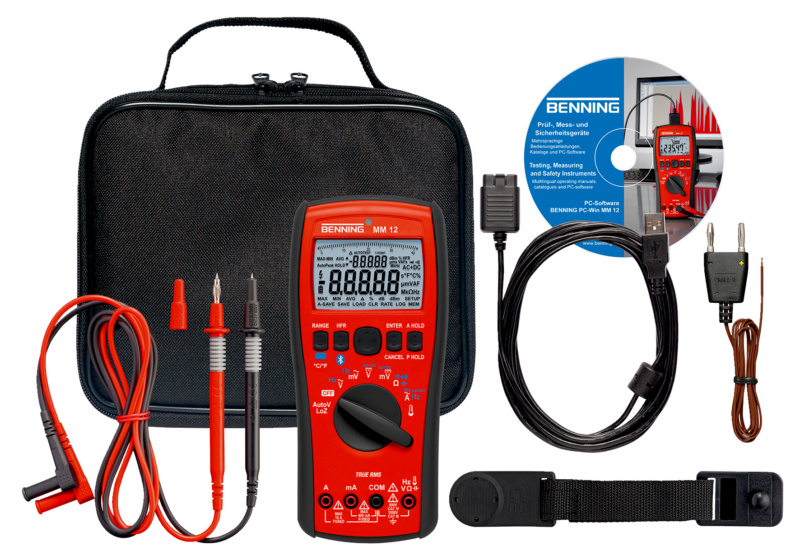

    Digital multimeter (True RMS) MM 12
  •
