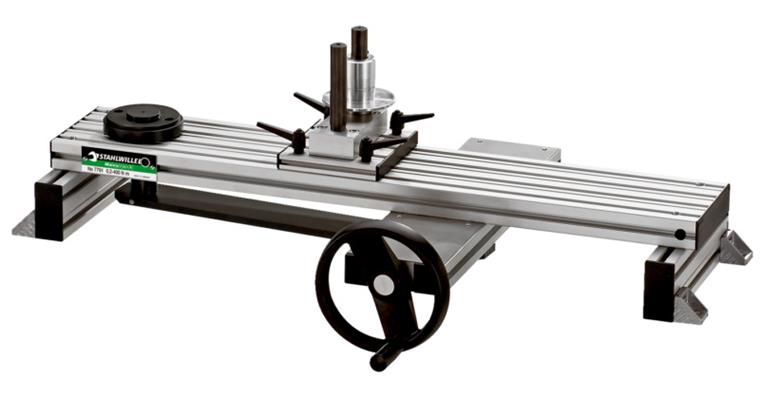

Actuating devices for torque wrench 0.2-400 Nm
Item no: 1055987 201
Online price:
Catalogue price:
You save:
Will be ordered for you
Min. order quantity: 1
Description
Execution- Measurement without shifting the force application point.
- A special power transmission system prevents the force application point from shifting during the calibration process.
- Powered by the handwheel, the lever mounted beneath the test rail is moved in a linear motion by a spindle. The linear movement is converted into a rotary motion that then takes effect on the transducer.
- The torque wrench to be calibrated remains in a constant position throughout the calibration. This means that measuring errors resulting from a shift in the force application point are avoided.
- The torque wrench is automatically aligned in the horizontal position by a low-friction linear bushing. The resulting reduction in the shear forces on the transducer leads to a reduction in measurement errors.
- Torque wrench, transducer, display unit and holder not included.
NotesFor extensions, see art. no. 1055987 202.
Technical data
Brand: STAHLWILLE
Height: 323 mm
Length: 1087 mm
Length x width x height: 1087 x 704 x 323 mm
Max. torque adjustment: 400 Nm
Min. torque adjustment: 0,2 Nm
Min./max. torque adjustment: 0.2-400 Nm
Profile width: 180 mm
Width: 704 mm
