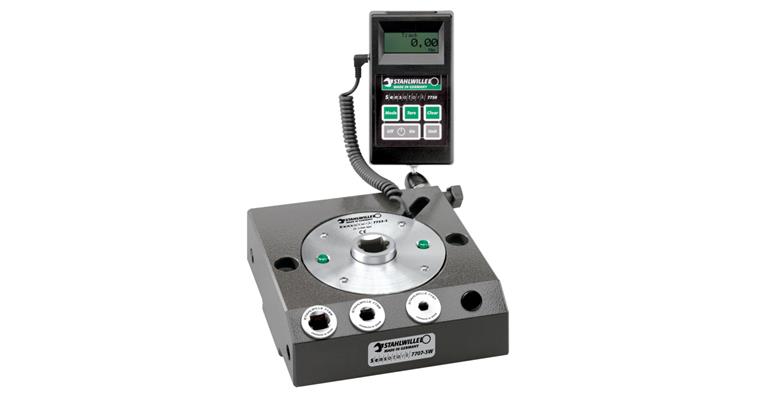

STAHLWILLE test device for torque wrench 25.0 - 1100 Nm

STAHLWILLE test device for torque wrench 25.0 - 1100 Nm

STAHLWILLE test device for torque wrench 25.0 - 1100 Nm
Item no: 1055980 104

Online price:

Available in 4-6 working days.

Application
For checking and adjusting torque wrenches for clockwise and anti-clockwise measurements.

Execution
  • Data can be transferred to a PC
  • Measuring units: Nm, ft.lb; modes: Track, Peak Hold, First Peak

Advantage
  • Compact design
  • Easy to expand using replaceable transducers
  • High accuracy

Delivery
Transducer, display unit, power supply unit, mounting kit, square adapter
With calibration certificate


Brand: STAHLWILLE
Min./max. torque measuring range: 25-1100 Nm
Drive: 3/4 inch
Error limit (%): 1 %
Max. torque measuring range: 1100 Nm
Min. torque measuring range: 25 Nm
Scale value: 0,01 nm

Manufacturer part no.: 7707-3W

EAN no.: 4018754181155

Product Datasheet
