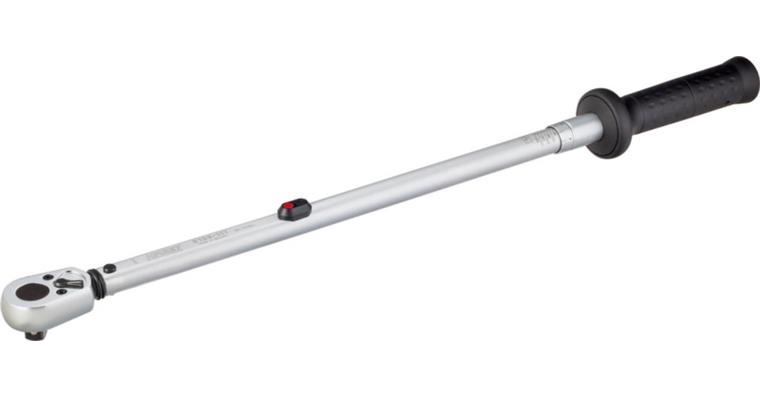

1/2 inch production signal torque wrench adjustment range 60-320 Nm

1/2 inch production signal torque wrench adjustment range 60-320 Nm

1/2 inch production signal torque wrench adjustment range 60-320 Nm
Item no: 1051726 104

Online price:

Available in 5-7 working days.

Application
High-precision premium torque tools - for the toughest requirements

Execution
  • Quick and reliable setting of the required value by twisting the handle
  • Rotary knob provides additional locking function for adjustments
  • Hard chrome-plated, slim steel pipe design
  • Automatic, audible, visible and perceptible quick-release
  • Art. no.: 1051726 102, 103, 104
    • With HiPer fine-toothed reversible ratchet, 90 teeth, 4° actuation angle

    • Reversing lever with free-running function - reduces the risk of injury and malfunctions

    • Ergonomically shaped handle with collar reduces the risk of slipping and injury
  • Art. no.: 1051726 105, 106
    • 2-component handle for improved tactility

    • Simplified locking mechanism for setting the torque value

    • Viewing window for visually checking the locking mechanism

    • Four colour coding rings (red, yellow, green, black) to mark customisations or special work processes
  • DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1

Advantage
  • Long-term endurance tests on HAZET torque wrenches in the 5000 and 6000 series have shown that it is no longer necessary to turn back to the smallest scale value
  • Accurate precision scale division

Delivery
- Supplied in robust Hexa packing tube
- With calibration certificate and serial number

Notes
Use a torque wrench with a push-in mount for anti-clockwise tightening

Brand: HAZET
Type: 6123-1CT
Tip type: Square-cut
Tip size: 1/2 inch
Min./max. torque measuring range: 60-320 Nm
With scale: Yes
Scale value torque: 2 Nm
Error limit (%): 2 %
Length: 661 mm
Calibration certificate: Works calibration certificate
VDE certified: No

Manufacturer part no.: 4000896025367

EAN no.: 4000896025367
