HAZET socket wrench insert 19 mm 3/8' DIN 3124 bi-hexagon

HAZET socket wrench insert 19 mm 3/8' DIN 3124 bi-hexagon

HAZET socket wrench insert 19 mm 3/8' DIN 3124 bi-hexagon
Item no: 1051232 111

Online price:

Available for immediate delivery

Application
Socket with bi-hexagon and 3/8 inch square drive.

Execution
  • With traction profile. Chrome-plated, drop-forged
  • The open-end, box-end and socket wrenches all have a profile that increases the force application areas on the screw heads.
  • A tangential force is transmitted to the edges of the screw heads and nuts.
  • Can also be used for screws outside the tolerance range
  • Protects the screw heads - force is applied to the surface to prevent edge crimping
  • Larger contact surface for maximum power transmission
  • Also loosens damaged screw heads
  • Knurled

Advantage
  • Force applied to the edges with optimum load distribution prevents the edges of nuts and bolts from being crushed
  • Good grip thanks to knurling


Brand: HAZET
Tip type: Double hexagon head
Width across flats: 19 mm
Drive: 3/8 inch
Tip profile type: Tractions profile
Length: 31,5 mm
Outer diameter: 25,8 mm
Surface: Chrome plated
Material: Chrome-vanadium steel
DIN: 3124
Internal drive: HS3/8 inch

Manufacturer part no.: 4000896041947

EAN no.: 4000896041947

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • HAZET socket wrench insert 21 mm 3/8' DIN 3124 bi-hexagon
  •
    HAZET socket wrench insert 22 mm 3/8' DIN 3124 bi-hexagon
  •
    HAZET socket wrench insert 20 mm 3/8' DIN 3124 bi-hexagon
  •
    KNIPEX circlip pliers J41 305 mm inset tips for internal rings
  •
    ATORN insert holder AME-R-16-ADE02-K-T13-C with internal cooling
  •
    Extra-long twist drill bit DIN 1870 type FN HSS ground 15.0 x 340 mm
  •
    Low-cut safety shoe Black Eagle Safety 41.1 Low S1P ESD size 45 (UK 10.5)
  •
    3/8 inch jointed lever reversible ratchet CV steel length 218 mm
  •
    Bi-hexagon combination wrench with ring ratchet reversible 3/8 inch
  •
    Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF10x0.75
  •

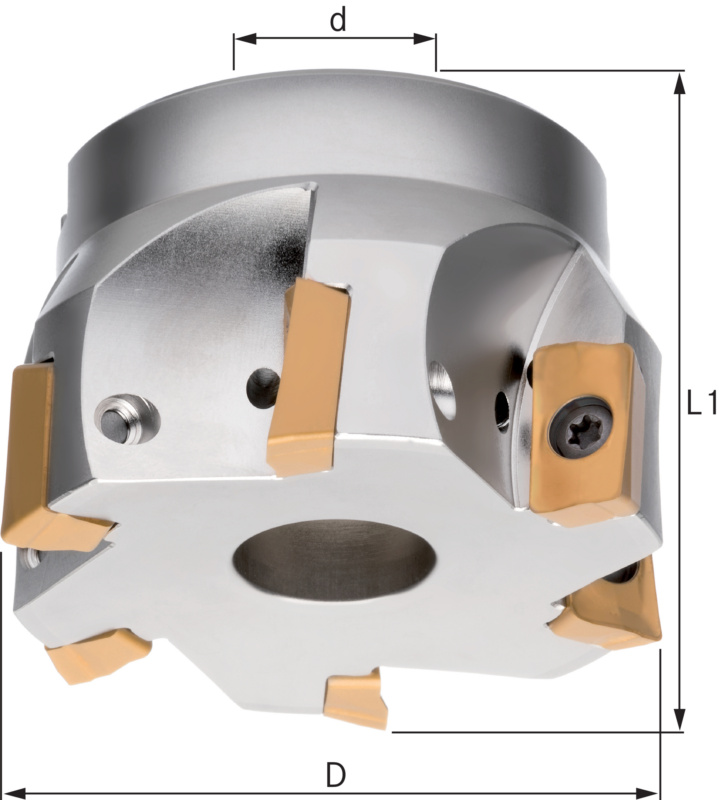

    ATORN ang. milling cutter, 90 deg., for APKT/APHT16, 125.0 mm, int. cooling T=9
