Sph. mounted points G100 head dia. 6 mm hardn. J shank dia. x shank lgth 3x30 mm

Sph. mounted points G100 head dia. 6 mm hardn. J shank dia. x shank lgth 3x30 mm

Sph. mounted points G100 head dia. 6 mm hardn. J shank dia. x shank lgth 3x30 mm
Video
Item no: 1044359 102

Online price:

Available in 6-8 working days.

Application
For extensive use on titanium materials, nickel and cobalt-based alloys, for the machining of hardened steel components, application welds and for the grinding and regrinding of repair welds in tool and mould making.

Advantage
  • Cool sanding, due to good friability of the grain mixture
  • Consistently high removal rate and very long service life due to the self-sharpening effect of the ceramic abrasive grain


Brand: PFERD
Material of abrasive medium: Fused aluminium oxide/ceramic
Hardness: J
Form: Ball shape
Shank diameter: 3 mm
Shaft length: 30 mm
Head diameter: 6 mm
Grain size: 100
Surface structure: Fine
Binding: Ceramically bound
Colour: Blue
Max. rotation speed: 159100 rpm
Material to be processed: Steel
Type: KU 06 3
Length of head: 6 mm

Manufacturer part no.: KU 06 3 AWCO 100 J5V TOUGH

EAN no.: 4007220802472

Product Datasheet
Additional articles

Please select a button.

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN SC TVC end mill ULTRA 20x82x145 mm T4 HB shank
  • ATORN SC TVC end mill ULTRA 10x52x100 mm T4 HB shank
  • ATORN SC TVC end mill ULTRA 12x62x120 mm T4 HB shank
  • ATORN SC TVC end mill ULTRA 16x82x140 mm T4 HB shank

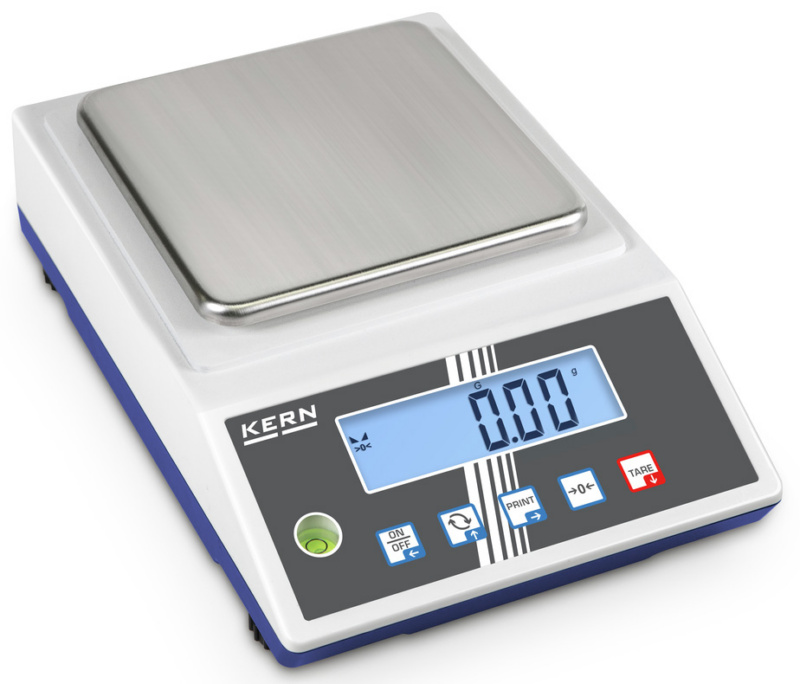

  • Präzisions-Laborwaage Typ PCB 1000-2 Wägebereich 1200g 0,01g Auflösung
