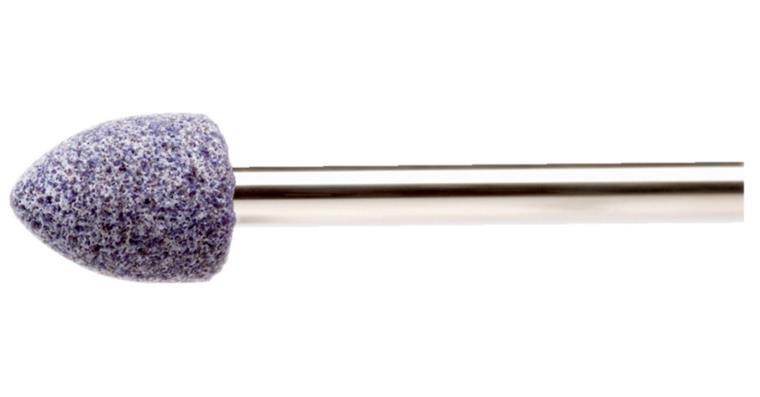

Mounted points NDW shank diameter 3 mm ogival DxH 8x10 mm

Mounted points NDW shank diameter 3 mm ogival DxH 8x10 mm

Mounted points NDW shank diameter 3 mm ogival DxH 8x10 mm
Item no: 1044302 102

Online price:

Available for immediate delivery

Application
For forming and tool construction, especially for finishing and deburring work, edge machining, hardened steels.

Execution
  • Recommended cutting speed 10-30 m/sec
  • Composition: N = synthetic corundum, D = dark red corundum, W = white monocrystalline corundum

Advantage
  • Excellent dimensional stability
  • High edge strength
  • Optimal machining results
  • Long service life


Brand: LUKAS-ERZETT
Material of abrasive medium: Corundum / fused aluminium oxide
Hardness: O
Form: Ogive shape
Shank diameter: 3 mm
Shaft length: 50 mm
Head diameter: 8 mm
Grain size: 100
Surface structure: Fine
Binding: Ceramically bound
Colour: Blue
Max. rotation speed: 70000 rpm
Material to be processed: Steel
Type: SP 0810 3
Length of head: 10 mm

Manufacturer part no.: SP 0810.03 X 50, NDW 100 QU V115

EAN no.: 4027497013920

Product Datasheet
