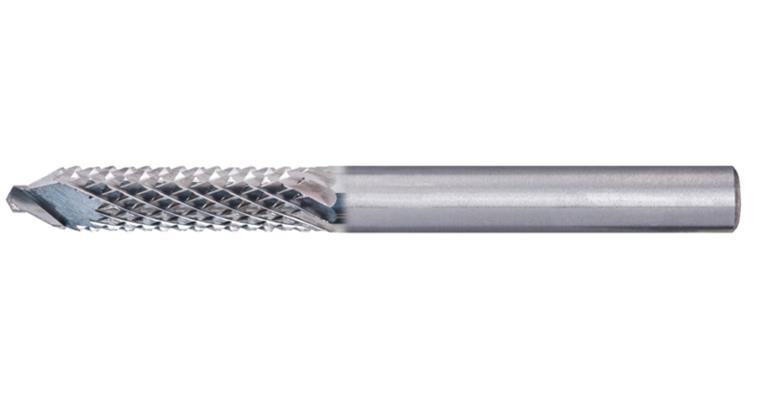

TC bur with centring drill tip for GFRP+CRP, serration FRP, dia. 6x30mm L=65mm

TC bur with centring drill tip for GFRP+CRP, serration FRP, dia. 6x30mm L=65mm

TC bur with centring drill tip for GFRP+CRP, serration FRP, dia. 6x30mm L=65mm
Item no: 1044294 201

Online price:

Available in 6-8 working days.

Application
For machining GFRP (glass fibre-reinforced plastics) and CFRP (carbon fibre-reinforced plastics).

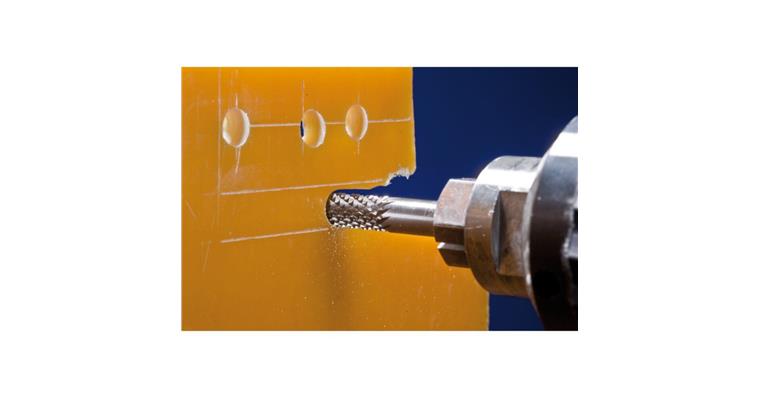

Intended for trimming and contour milling of GFRP and CFRP fibre-reinforced plastics, hard rubber and thermoplastics.

Execution
  • FRPS serration: Fine machining = low degree of material removal
  • Art. nos. 1044293 201-202: The special drill cutting edge (BS) can be inserted into solid material, allowing drilling and milling to be completed in a single step
  • Art. no. 1044294 201: The centring drill tip (ZBS) can be inserted into solid material, allowing drilling and milling to be completed in a single step. Designed specifically for manual use. The centring drill tip permits reliable spot drilling on almost all surfaces.

Advantage
  • Suitable for use with machines and robots with high feed rates due to its special tooth design
  • Smooth milling behaviour
  • Creates a smooth cutting edge


Brand: PFERD
Material to be processed: GRP | CFK | Hard plastic | Rubber
Serration type: FVKS
Form: Cylindrical
Head diameter: 6 mm
Head diameter x cutting edge length: 6 x 30 mm
Shank diameter: 6 mm
Cutting edge diameter: 6 mm
Cutting edge diameter x cutting edge length: 6 x 30 mm
Cutting edge length: 30 mm
Cutting material: Carbide
Length: 65 mm

Manufacturer part no.: ZYA 0625/6 FVKS ZBS

EAN no.: 4007220869055

Product Datasheet
