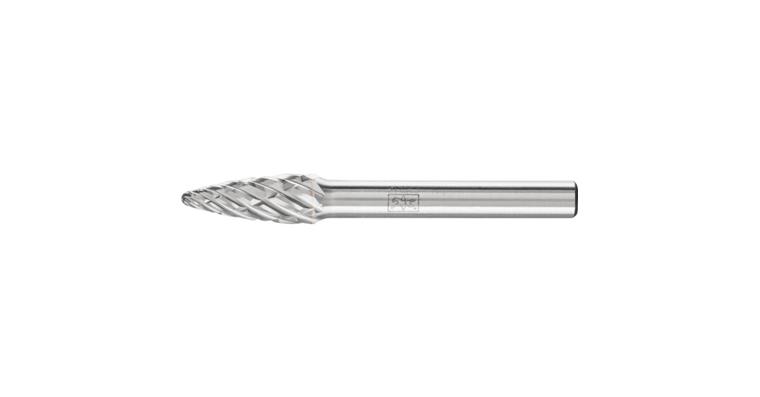

TC bur, rounded shape (RBF), shank dia. 6 mm, serration STEEL, head dia.xL 8x20

TC bur, rounded shape (RBF), shank dia. 6 mm, serration STEEL, head dia.xL 8x20

TC bur, rounded shape (RBF), shank dia. 6 mm, serration STEEL, head dia.xL 8x20
Video
Item no: 1044266 207

Online price:

Available in 6-8 working days.

Application
The high profile accuracy of the carbide burs enables use on robots and repeat re-grinding.

Execution
  • DIN 8032
  • With chip breaker

Advantage
  • The precise concentricity of the PFERD carbide burs:
  • Protects the health of the person during the working process
  • Reduces wear on the drive machine
  • Enables impact-free working
  • Prevents chatter marks

Notes
Other sizes and serrations and carbide burs with special shaft shapes and lengths as well as special serrations deliverable on request.

Brand: PFERD
Material to be processed: Cast steel | Steel
Serration type: STEEL
Form: Semicircular shape
Head diameter: 8 mm
Length: 60 mm
Shank diameter: 6 mm
Cutting edge diameter: 8 mm
Cutting edge diameter x cutting edge length: 8 x 20 mm
Cutting edge length: 20 mm
Cutting material: Carbide
Head diameter x cutting edge length: 8 x 20 mm

Manufacturer part no.: RBF 0820/6 STEEL

EAN no.: 4007220936900

Product Datasheet
