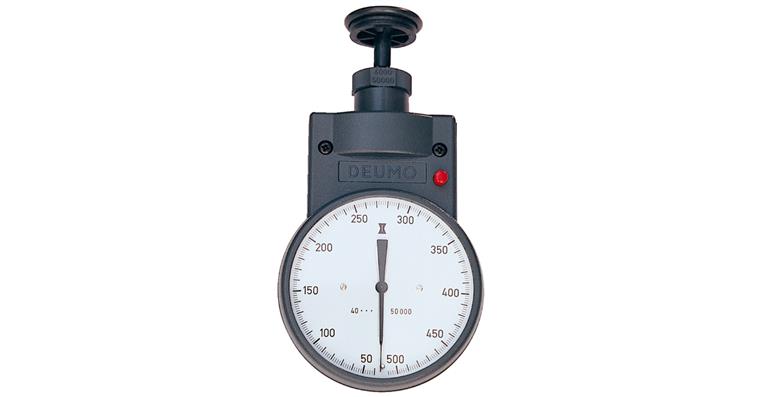

Hand-held tachometer MR 40-50,000 rpm Accuracy +/- 0.5%

Hand-held tachometer MR 40-50,000 rpm Accuracy +/- 0.5%

Hand-held tachometer MR 40-50,000 rpm Accuracy +/- 0.5%
Item no: 1039110 101

Online price:

Available in 6-8 working days.

Application
For rotation and cutting speed measurement (roller disc) with continuous display, for both directions of rotation.

Execution
  • Works according to the eddy current principle
  • Push-button locking of the respective measured value
  • Display accuracy of +/-0.5% (based on the end value)
  • Measuring range divided into 3 measuring stages: 40-500 / 400-5000 / 4000-50,000 rpm

Delivery
Complete with rubber tip, rubber centre inserts, carrier funnel, roller disc for speed measurement, extension and replacement tips, in case


Brand: ---
Min./max. rotation-speed measuring range: 40-50000 U/min(rpm)
Error limit (%): 0,5 %
Diameter dial: 74 mm
