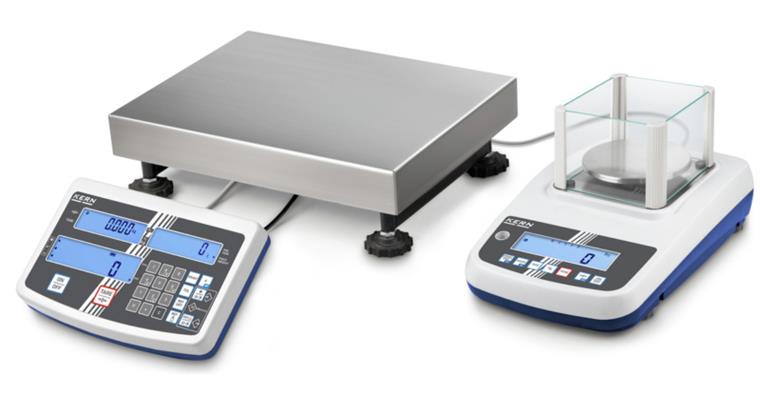

Zählsystem Typ CCA 10K-5M

Zählsystem Typ CCA 10K-5M

Zählsystem Typ CCA 10K-5M
Item no: 1038166 402

Online price:

Available in 8-9 working days.

Application
For counting the smallest parts in large quantities.

Execution
  • Reference scales:
  • These precision scales, which can also be used on their own, can also meet the highest demands for accuracy by connecting a high-load platform
  • Internal automatic adjustment, time-controlled every 2 hrs
  • Bulk counter:
  • Automatic reference optimisation gradually improves the average part weight
  • Quantity counting can be carried out with high precision on the weighing platform, allowing even the smallest countable parts to be counted in very large volumes
  • Ergonomic evaluation unit with large keypad and high-contrast LCDs for convenient input and reading
  • Three displays for weight, reference weight, total number of pieces
  • 100 item memory locations for master data such as reference weight, reference quantity, container weight (prior tare deduction) etc.

Advantage
Heavy industry standard suitable for harsh use (IP65)

Delivery
1x counting system CCA
1x protective cover

Notes
DKD certificate and test weights deliverable on request.

Brand: KERN
Type: CCA 10K-5M
Max. weight measuring range: 15 kg
Digit increment, weight: 5 g
Plate size: 300 x 240 mm
Min. item weight: 0,2 g
Data transmission type: Cable
Cable length connection cable: 3 m

Manufacturer part no.: CCA 10K-5M

EAN no.: 4045761235120

Product Datasheet
