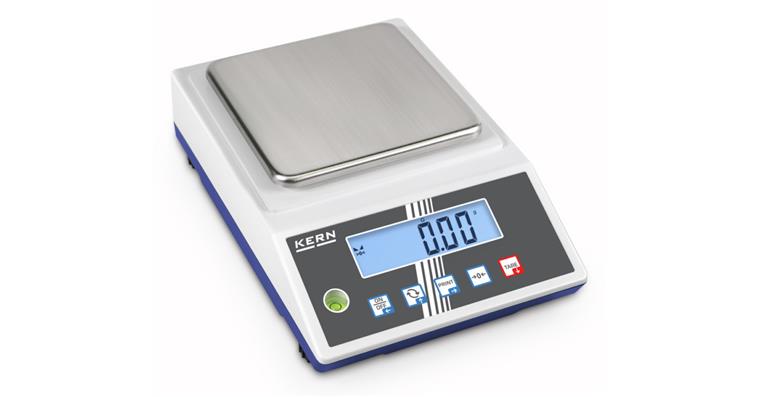

KERN - PCB 3000-2 precision laboratory scales, 0.01 g resolution

Application
For versatile applications in laboratories and production facilities.

Execution

KERN Communication Protocol (KCP): The KCP allows for placing queries and remote control of the scales via external control units or computers
Uniform, simplified operating philosophy
A special anti-shock system between the weighing tray and the weighing cell reduces vibrations during weighing, thus ensuring faster and more reliable weighing results
Ring-shaped wind guard as a standard feature on models with weighing tray dia. 82 mm
Can be battery operated

Advantage

Compatible with school-specific software solutions such as Vernier® or LabQuest®. Thanks to the KERN School Protocol, weighing data can be transferred to a PC, laptop etc. for evaluation and visualisation using the USB data interface as part of technical experiments
Industry 4.0: The KERN Universal Port allows data and control commands to be exchanged over an interface on the housing or via three interfaces in parallel by means of a KUP Extension Box. The following interfaces can be chosen from: RS-232, USB, Ethernet, Wi-Fi, Bluetooth

Delivery
1x laboratory scales
1x protective working cover

Notes
For batteries, see art. no. 1039900 303.
Interface adapter for data transfer, see art. no. 1035200 801-808.
DKD certificate and test weights available on request.

Brand: KERN
Max. weight measuring range: 3600 g
Digit increment, weight: 0,01 g
Plate size: 130 x 130 mm
Type: PCB 3000-2
Reproducibility: 0,01 g
Linearity: 0,05 g
Data transmission type: Cable | WLAN | Bluetooth
Housing dimensions (LxWxH): 245 x 163 x 65 mm
Min. item weight: 0,2 g
Animal scale (MOVE): Yes
Calculation of percentage (PERCENT): Yes
Calibration programme (CAL): Yes
Floor scale (in-floor weighing) (UNDER): Yes
Recipe A (RECIPE): Yes
Weighing unit (UNIT): Yes
Weighing with tolerance range (TOL): Yes
With unit counting: Yes
