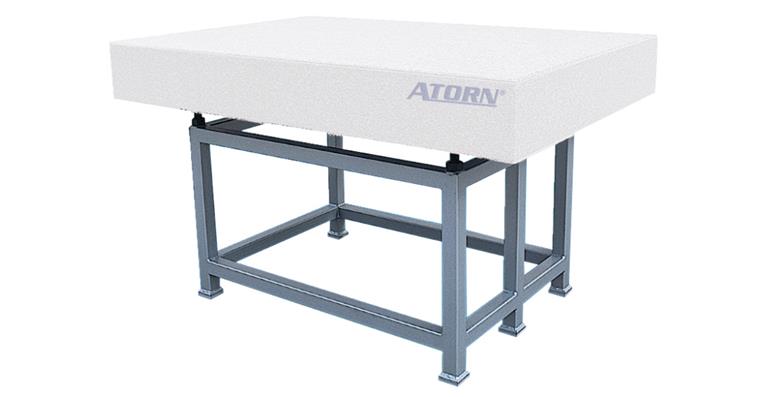

Base frame profile steel for measuring plate 1200x800x160 mm, 30 kg

Base frame profile steel for measuring plate 1200x800x160 mm, 30 kg

Base frame profile steel for measuring plate 1200x800x160 mm, 30 kg
Item no: 1036768 112

Online price:

Availability on demand

Application
For measurement and control plates (art. no. 1036762, 1036765 and 1036766).

Execution
  • Sturdy welded construction, including bearing set (3-point support and 2 adjusting screws as tipping protection)
  • Top edge of measuring plate approx. 900 mm
  • Silver grey paint
  • Sectional steel
  • Frame 630 x 400 mm can also be used for hard stone slab 600 x 500 mm

Delivery
Without measuring and control plate

Notes
Special paints are deliverable on request.

Brand: PLANOLITH
Plate size: 1200 x 800 mm
Weight: 30 kg

Manufacturer part no.: 178 H

EAN no.: 4024496084173

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

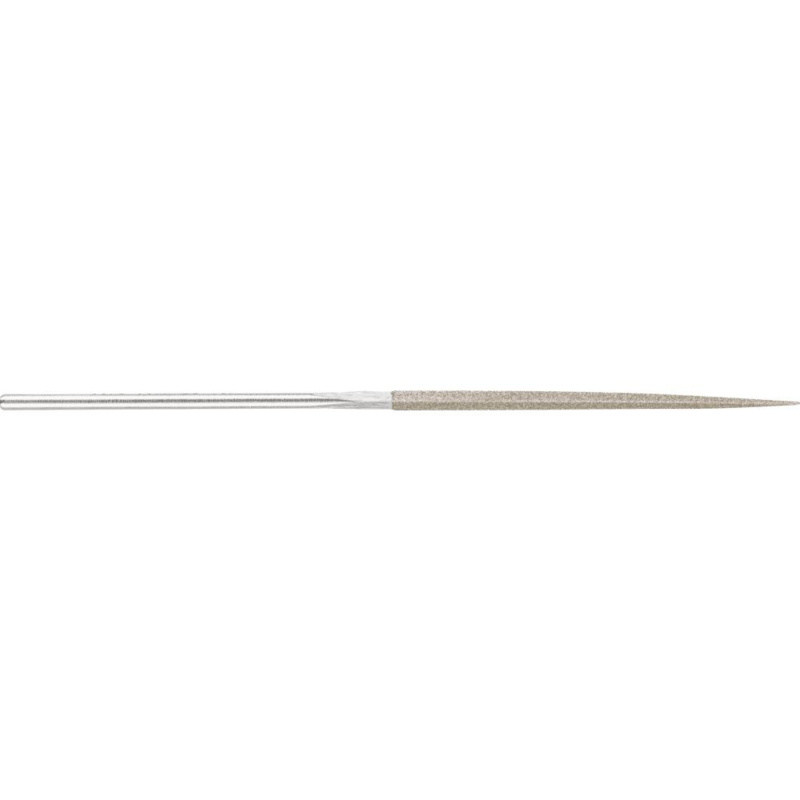

  • Diamond needle file, triangular, D 126 medium, length 140mm, shank dia. 3mm
  •
