Parallel rests set 14 pairs accuracy +/- 0.01 mm ISO 2768 14-50 mm

Parallel rests set 14 pairs accuracy +/- 0.01 mm ISO 2768 14-50 mm

Parallel rests set 14 pairs accuracy +/- 0.01 mm ISO 2768 14-50 mm
Item no: 1036602 101

Online price:

Available for immediate delivery

Application
As spacers for workpieces in a wide variety of machining operations.
The constant width means that the parallel rests can be built up in height.

Execution
  • Case-hardened and ground
  • Contact surfaces finely ground
  • Nominal dimensions according to ISO 2768 - m

Advantage
The removable hinged lid allows the set to be stored open in the tool cabinet

Delivery

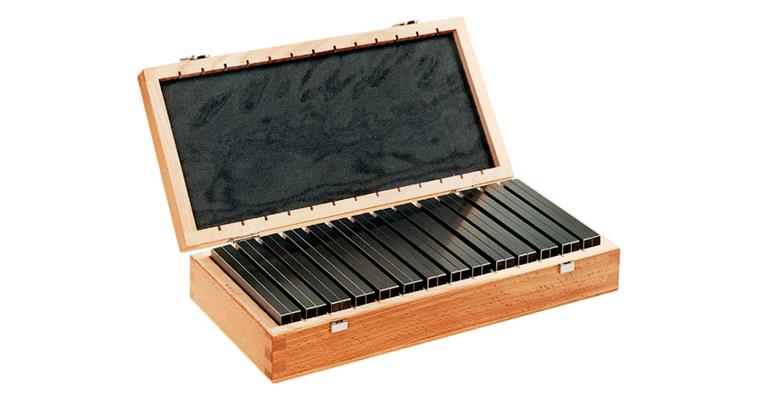

In a wooden case with removable hinged lid


Brand: ---
Parallel rest length: 150 mm
Composition of set: 1 pair each, width x height:
10x14 | 10x16 | 10x18 | 10x20 | 10x22 | 10x24 | 10x26 | 10x28 | 10x30 | 10x32 | 10x35 | 10x40 | 10x45 | 10x50 mm
Number of pieces in assortment/set: 14 Pair
Pair tolerance: 0.01 mm
Nominal tolerance, height 14-30 mm: +/- 0.020 mm
Nominal tolerance, height 32-50 mm: +/- 0.030 mm
Max. set height: 50 mm
Min. set height: 14 mm
Parallel rest width: 10 mm

EAN no.: 4020772019440

Product Datasheet
Keywords:

[Text nicht gefunden]

  • Hand tap DIN 352 no. 1 taper tap HSS polished M3
  •
    Hand tap DIN 352 no. 1 taper tap HSS polished M5
  •
    Hand tap DIN 352 no. 2 second tap HSS polished M4
  •
    Hand tap DIN 352 no. 2 second tap HSS polished M5
  •
    Thread repair inserts pack=20 pieces M5 x 5 for cat. no. 14800+14810
  •
    ATORN toolholder J for boring bars and round lathe tools type BJ 40x120
  •
    PROFIPOL®+ two-pole voltage and continuity tester 12-690 V AC/DC
  •

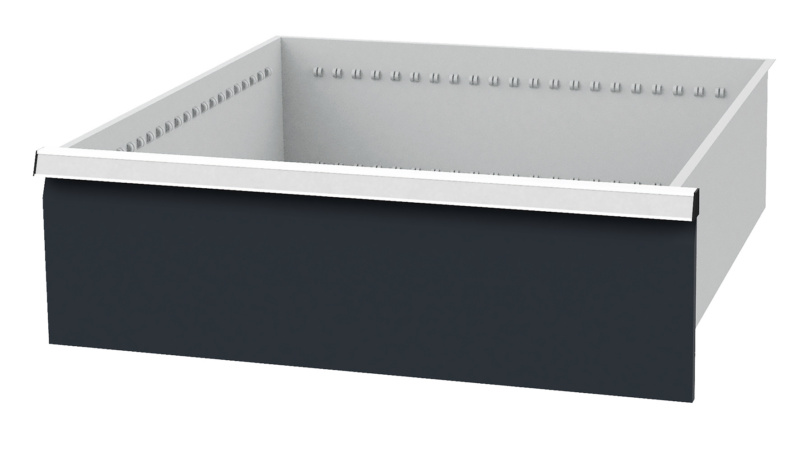

    Drawer WxD 450x600mm full-exten. sl. 100 % 100kg front height 250mm RAL7035/5010
    193,20 €

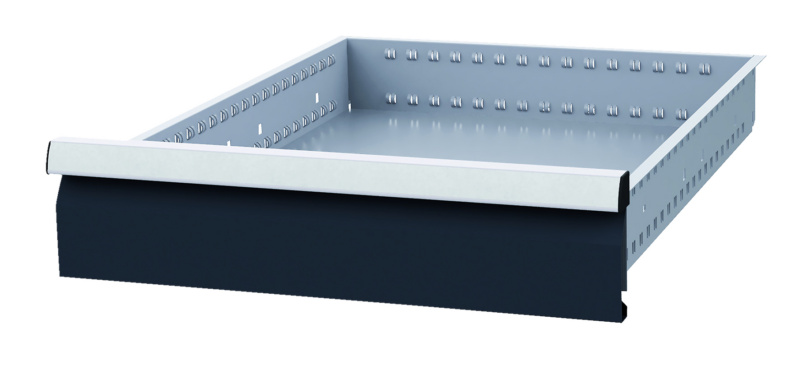

  • Drawer WxD 450x600mm full-exten. sl. 100 % 100kg front height 125mm RAL7035/7016
