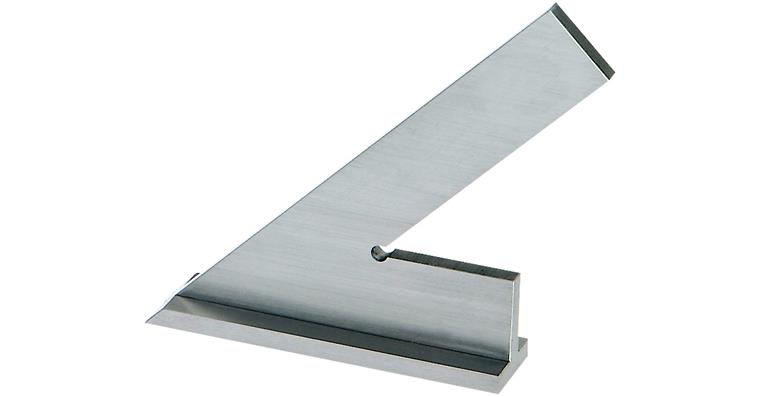

ATORN acute mitre square, 45°, 150x100 mm, sim. to DIN 875, f 90° steel squares

ATORN acute mitre square, 45°, 150x100 mm, sim. to DIN 875, f 90° steel squares

ATORN acute mitre square, 45°, 150x100 mm, sim. to DIN 875, f 90° steel squares
Item no: 1036189 102

Online price:

Available in 8-10 working days.

Application
For marking off and inspecting 45° angles

Execution
  • With stop
  • Test surfaces precisely ground and lapped, side surfaces ground
  • Made from special steel


Brand: ATORN
Limb length x limb length 2: 150 x 100 mm
Angle: 45 Degree
Type: Acute mitre square
Material: Unhardened steel
Cross-section length x cross-section width: 20 x 5 mm
Flatness tolerance of side length: 30 µm
Flatness tolerance side length 2: 27 µm
Straightness tolerance side length: 30 µm
Straightness tolerance side length 2: 27 µm
Angularity tolerance external angle: 65 µm

ATORN-No.: 31050108

EAN no.: 4050293187229

Product Datasheet
