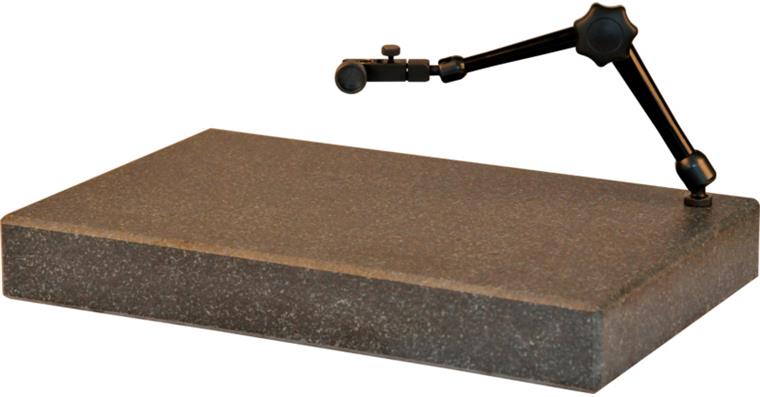

ATORN universal hard stone base with 3D articulated arm 400x400 mm

ATORN universal hard stone base with 3D articulated arm 400x400 mm

ATORN universal hard stone base with 3D articulated arm 400x400 mm
Item no: 1034627 101

Online price:

Available in 4-6 working days.

Application
For positioning components requiring a high-precision base.

Execution
  • M8 measuring table insert nut
  • Holder for 8 mm shaft diameters and dovetail mount
  • articulated arm with operating radius of 285 mm


Brand: ATORN
Measuring table size: 400 x 400 x 50 mm
Adapter diameter: 8 mm
Overhang: 375 mm
DIN: 876-1

ATORN-No.: 32100026

EAN no.: 4050293431452

Product Datasheet
