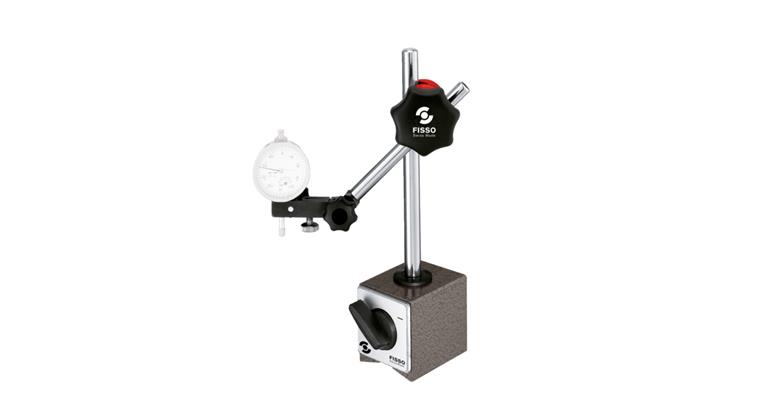

Magnetic meas stand total height=453 mm, transverse arm 12x164, adh. force 750 N

Magnetic meas stand total height=453 mm, transverse arm 12x164, adh. force 750 N

Magnetic meas stand total height=453 mm, transverse arm 12x164, adh. force 750 N
Item no: 1034019 103

Online price:

Still in stock: 1

Application
Ideal for use with lever gauge probes and small dial gauges.

Execution
  • High stability and measuring accuracy
  • Practical positioning
  • Secure, stable base
  • Strong central clamping with robust aluminium clamping jaws
  • Additional joint before fine adjustment
  • Precise micro-fine adjustment with combined mount for dial gauges with shank dia. 8 mm and lever gauge probes with dovetail
  • Strong switching magnet

Delivery
Without dial gauge

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank or dovetail guide.

Brand: FISSO
Overall height: 453 mm
Overhang: 164 mm
Adherence strength: 750 N
Base size: 60 x 50 x 55 mm
Measuring arm diameter: 14 mm
Measuring arm length: 184 mm
Base height: 55 mm
Base width: 50 mm
Foot length: 60 mm

Manufacturer part no.: LM35.10

EAN no.: 7640152570377

Product Datasheet
