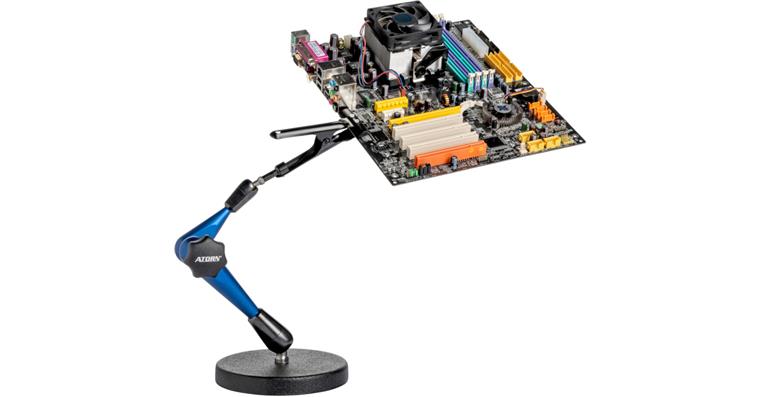

ATORN 3D PCB holder, operating radius 280 mm, with rubberised spring clip

ATORN 3D PCB holder, operating radius 280 mm, with rubberised spring clip

ATORN 3D PCB holder, operating radius 280 mm, with rubberised spring clip
Item no: 1034011 301

Online price:

Available in 6-8 working days.

Application
For holding and freely positioning flat components e.g. PCBs, sheet metal components or other plate materials

Execution
  • Mechanical, maintenance-free central clamping mechanism
  • Features a heavy steel base with a diameter of 150 mm, non-slip thanks to the rubber feet
  • An earthing wire can be connected to the steel base
  • Strong, rubberised spring clip, 50 mm jaw width

Advantage
  • simple, quick operation
  • high degree of manoeuvrability, exact positioning


Brand: ATORN
Operation radius: 280 mm
Retaining force: 36 N
Base diameter: 150 mm
Overall height: 390 mm
Fine adjustment: No

ATORN-No.: 31089319

EAN no.: 4066107030582

Product Datasheet
