Rauheitsmessgerät W15 ohne Taster mit Software

Rauheitsmessgerät W15 ohne Taster mit Software

Rauheitsmessgerät W15 ohne Taster mit Software
Item no: 1033926 102

Online price:

Available in 11-13 working days.

Application
Compact, mobile roughness tester for standardised roughness measurement in production and in measuring rooms.

Execution
  • All R-profiles can be measured precisely
  • Manual feed with integrated start button for one-handed operation
  • Measure in any position and at any angle, including overhead, vertical or transverse scanning
  • Flexible programme design and logging
  • Export characteristic values and profiles, optional statistic interfaces
  • Includes measurement and evaluation software Evovis Mobile Standard
  • Wireless data transfer via Bluetooth® interface
  • Probe connection: T1x probe (6-pin), measuring range +/-100 µm (standard probe), resolution 6 nm

Advantage
  • With Evovis mobile software, supports the 'latest' roughness standard ISO 21920 (in scope of delivery)
  • Transverse probing of surfaces possible without changing equipment
  • Wide range of skidded tracers

Delivery

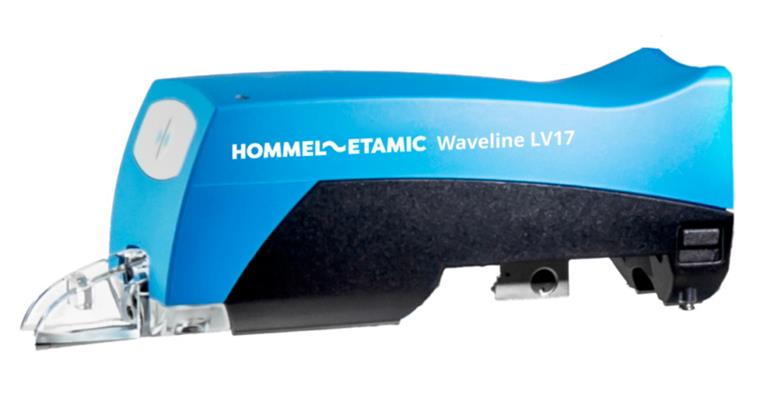

1x Waveline LV17 feed unit
1x Waveline Evovis Mobile Standard software
1x T1E KE2/90D 30/1.95S T- D4.5/20 probe
Power adapter, cable
Tool set
Storage case


Brand: HOMMEL ETAMIC
Type: Waveline W15 ohne Taster
Probe system: Runner probe system
Surface roughness sensing speed: 0.1 mm/s | 0.5 mm/s | 1 mm/s
Parameters: W | Wx (MOTIF) | A1 | A2 | AR | AW MOTIF) | MR1 | MR2 | NR (MOTIF) | NW (MOTIF) | R | Ra | Rc | Rdc | RdL | Rdg | Rdq | Rk | Rmax | Rmr | Rp | Rp (ASME) | Rpc | Rpk | Rq | Rsk | Rsm | Rt | Rv | Rvk | Rx | Rz | Rz (JIS)
Data transmission type: Bluetooth | Cable

Manufacturer part no.: 728826

Product Datasheet
Additional articles

Please select a button.

Accessories
Versions
loading
Keywords:

[Text nicht gefunden]

  • Messplatz MS300 für Rauheitsmessgeräte Waveline
    2.988,00 €
  • Waveline Evovis mobile standard Software
    1.188,00 €
  • Rauheitsmessgerät W15 mit 2µm Taster und Software
  •
    Rauheitsmessgerät W40 ohne Taster mit Software
  •

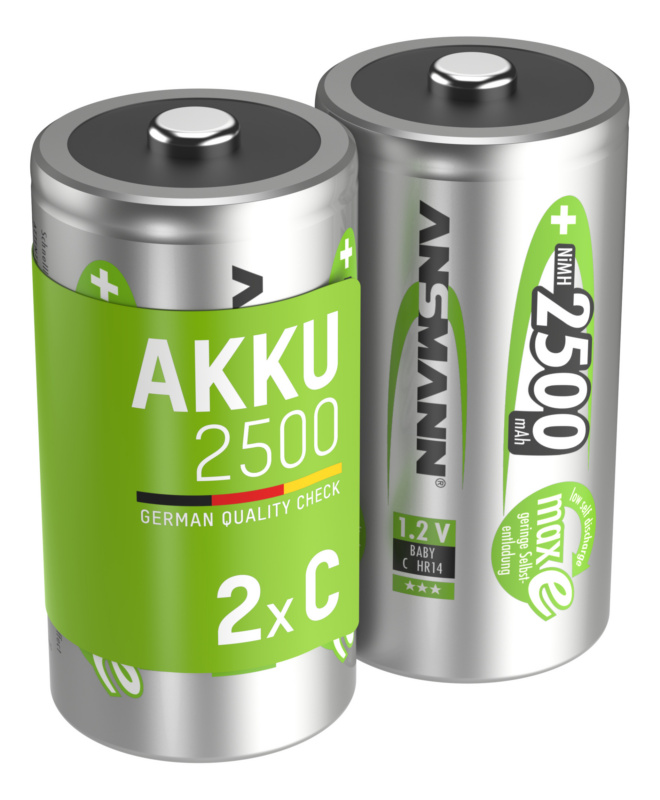

    NiMH Akku Baby C 2500 mAh Pack = 2 Stück
