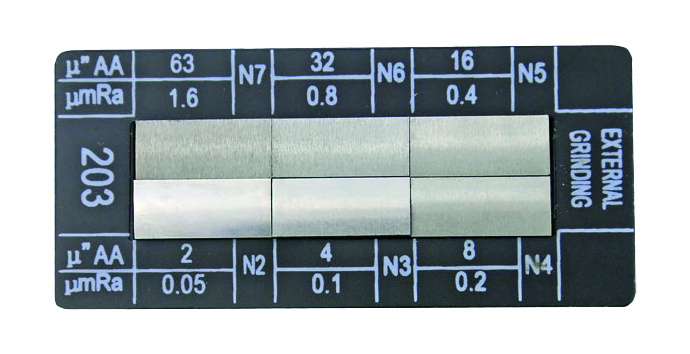

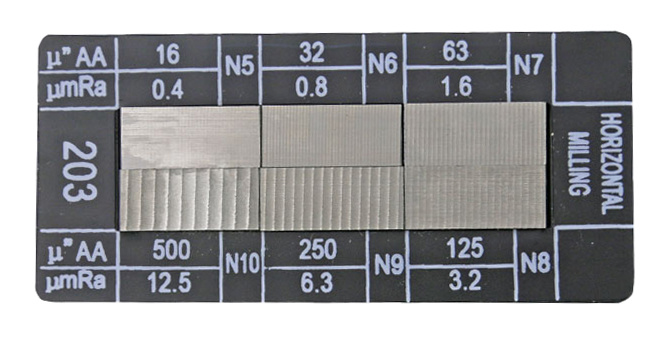

Surface specimen plate set, 30 reference specimens N2-N10

Surface specimen plate set, 30 reference specimens N2-N10

Surface specimen plate set, 30 reference specimens N2-N10
Item no: 1033890 206

Online price:

Still in stock: 3

Application
For comparative testing of the surface quality by visual and tactile examination (with fingernail), in accordance with standards ISO/R 468, ISO 2632/1 1975 and NF E 05-051.

Execution
For comparative testing of the surface quality

Notes
These specimen plates efficiently illustrate the various surface types that are achieved with machines that are used in industry.
Calibration service is not available for this item.

Brand: ---
Machining method: Flat grinding | Horizontal milling | Front milling | Turning | Cylindrical grinding | Lapping
Number of comparative patterns: 30 PCS
Min./max. Ra comparison range: 0.05-12.5 µm
ISO surface roughness categories: N2 | N3 | N4 | N5 | N6 | N7 | N8 | N9 | N10
Min. Ra comparison range: 0,05 µm
Max. Ra comparison range: 12,5 µm

EAN no.: 4054469127798

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Surface specimen plate horizontal milling, 6 reference specimens N5-N10
  •
    Blind hole screw tap UNF DIN 371 40° shape C 3xD HSS-E 1/4 inch
  •
    ATORN SC mini torus milling cutter, diameter 1.5 x 2.3 x 6.0 x 50 mm, HA shaft
  •
    Surface specimen plate face grinding, 6 reference specimens N2-N7
    190,70 €
  • Surface specimen plate circular grinding, 6 reference specimens N2-N7
  •
    Ratschen-Maulschlüssel SW 18 mm, SW-Zoll 11/16 rostfreier, vergüteter Stahl
  •
    Euro transport container polypropylene stackable stable 400x300x180 mm grey
  •
    Quadruple prism parallel piece accuracy DIN876/1, 60x120x100 mm
  •

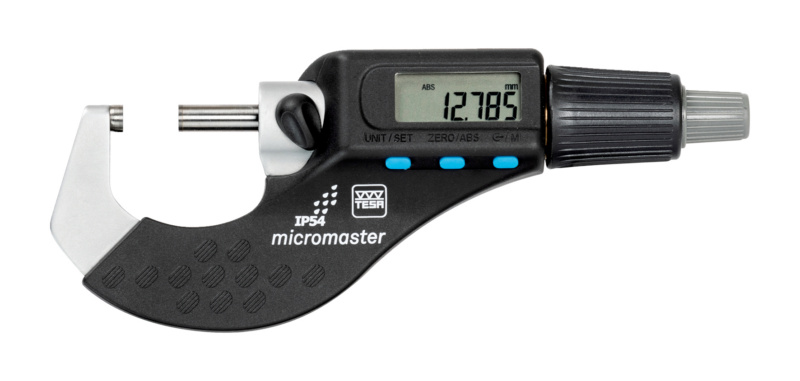

    Precision digital micrometer MICROMASTER RS232 capa µm IP54 MR 0-30
  •
