Int. precision measuring instrument set carbide-tipped meas. pin MR 18-100 mm

Int. precision measuring instrument set carbide-tipped meas. pin MR 18-100 mm

Int. precision measuring instrument set carbide-tipped meas. pin MR 18-100 mm
Item no: 1033831 108

Online price:

Available in 8-10 working days.

Application
For precise measuring of bores using the 2-point method. Turning and/or moving the device in the bore makes it possible to detect deviations in shape.

Execution
  • Movable carbide-tipped measuring pin
  • Art. no. 1033830: fixed measuring pin made of hardened steel
  • Art. no. 1033831: fixed carbide-tipped measuring pin

Advantage
  • High repeatability 0.5-1.5 µm
  • Self-centring in the bore
  • INVAR pipe (special nickel alloy) guarantees minimum thermal expansion caused by body heat from hands or high ambient temperatures

Delivery
1x bore gauge
1x wooden case
Calibration certificate
Without dial indicator

Notes
Varianten:
Typ SU - Standardausführung

Brand: SCHWENK
Calibration Group: T
Min./max. diameter of measuring range: 18-100 mm
Measuring depth: 116/179 mm
Number of measuring pins: 28 PCS
Nominal dimension of spindle: 50-100 mm, increasing every 5 mm | 18-34 mm, increasing every 2 mm | 35-59 mm, increasing every 5 mm
Number of measurement discs: 8 PCS
Measurement disc thickness: 1 mm | 2 mm | 3 mm | 6 mm
Material of measuring bolt: Carbide
Number of pieces in assortment/set: 36 PCS
Type: SU

Manufacturer part no.: 11500002

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €

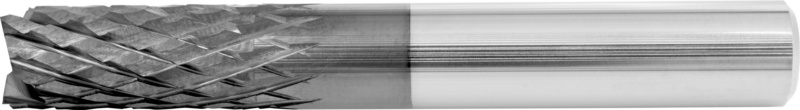

  • ATORN SC compression milling cutter diameter 10.0 mm W-C:17.5 L:78x35 d10
  •
