Fühlhebelmessgerät P-LINE 213G, standard, 1,5 mm, 0,01 mm, Ø 40 mm

Fühlhebelmessgerät P-LINE 213G, standard, 1,5 mm, 0,01 mm, Ø 40 mm

Fühlhebelmessgerät P-LINE 213G, standard, 1,5 mm, 0,01 mm, Ø 40 mm
Item no: 1033260 302

Online price:

Available in 6-8 working days.

Application
For measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring shafts, boreholes and aligning workpieces.

Execution
  • Housing made of high-quality metal
  • Rotating scale dial
  • In accordance with ISO standard 9493

Delivery
Lever gauge probe with built-in ball measuring insert dia. 2 mm
Wrench for assembly of the gauge slide
Clamping shank dia. 4 mm
Clamping shank dia. 8 mm
Measurement report
Declaration of conformity


Brand: TESA TECHNOLOGY
Length measuring range: 1,5 mm
Type: Standardausführung
Scale value: 0,01 mm
Measurement travel of one pointer revolution: 0,5 mm
Diameter: 40 mm
Length of measuring sensor from centre of ball: 18 mm
Measurement force: 0,35 N
Connection thread: M1.7
Data transmission type: 0 - not applicable
Material of measuring ball: Carbide
Ball diameter: 2 mm
Calibration Group: L

Manufacturer part no.: 01810401

EAN no.: 7630041152340

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN high-perf. SC drill ULTRA M HPC 3xD 3.25 mm x 6 mm x 62 mm HA internal
    67,42 €
  • ATORN high-perf. SC drill ULTRA M HPC 3xD 3.25 mm x 6 mm x 62 mm HE internal
  •
    ATORN high-perf. SC drill ULTRA M HPC 5xD 3.25 mm x 6 mm x 66 mm HA internal
    73,96 €
  • ATORN thread milling cutter holder, SC A18 250 mm 20 mm HA
  •
    LIZZARD Spannzange ER 20 HP Ø 7,5 metallisch abgedichtet Rundlauf 0,005 mm
    66,24 €
  • Straight box wrench DIN 837, ISO 10103 chrome-alloy steel AF 17x19 mm
    16,37 €

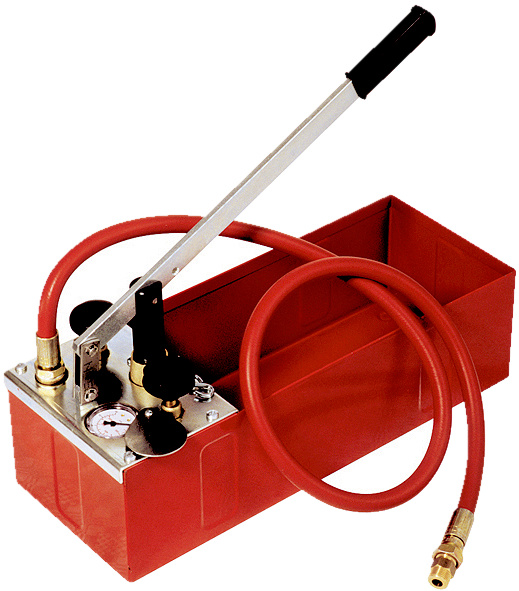

  • Test pump for oil and water line, test pressure max. 60 bar
