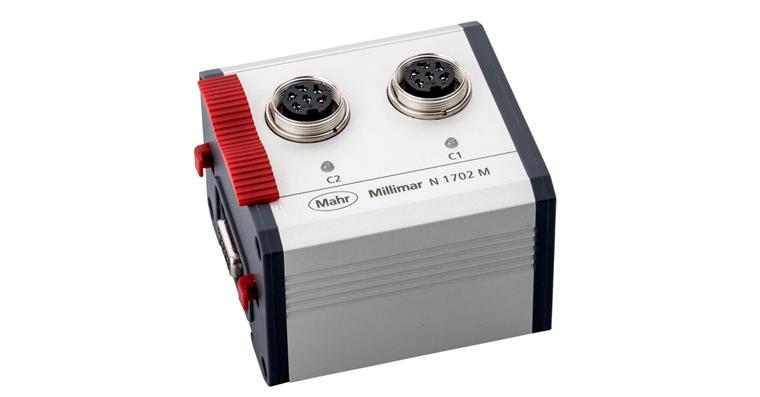

Module for 2 inductive probes N 1702 M

Module for 2 inductive probes N 1702 M

Module for 2 inductive probes N 1702 M
Item no: 1033107 103

Online price:

Available in 6-8 working days.

Application
Smart and flexible combination of measurement modules and software for customer-specific measuring tasks.

Execution
  • Bus modules that can be combined flexibly
  • Powerful connection modules for evaluating measuring sensors
  • Synchronous data query of several connected measuring probes
  • Connection of the N 1700 modules via USB interface to the smart, universal evaluation and configuration software Millimar Cockpit
  • Connection of all compatible measuring probe types via one and the same module
  • Flexible and modular combination of products for solving specific measuring tasks
  • Maximum theoretical bus data rate of 4149 values/s (depending on the number of connected channels)
  • Measuring range of inductive probes ± 5,000, ± 2,000, ± 1,000,
    ± 500 µm
  • Compatibility: Mahr, Mahr 1340, Mahr half bridge, Mahr LVDT, Mahr VLDT
  • Configuration using Millimar Cockpit software

Delivery
1x operating instructions


Brand: MAHR
Type: Millimar N1702 M
Number of measuring sensor connections: 2 PCS
Digit increment: 0,1 µm
Interface input: RS485
Error limit: 0,0002 mm
IP protection class: IP 42
Included in delivery: Operating instructions

Manufacturer part no.: 5331120

EAN no.: 4059192061289

Product Datasheet
