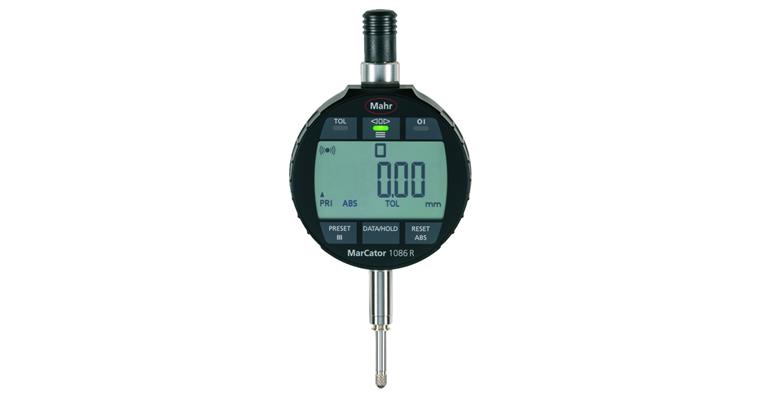

Digitale Messuhr 12,5 mm/0,01 mm MarCator 1086 Ri

Digitale Messuhr 12,5 mm/0,01 mm MarCator 1086 Ri

1033091201 Digitale Messuhr 12,5 mm/0,01 mm MarCator 1086 Ri
Item no: 1033091 201

Online price:

Will be ordered for you

Application
Zum Messen von Längen und Längendifferenzen, z.B. Rundlauf-, Ebenheits-, Lagemessungen.

Execution
  • Für statische Messungen
  • iduktives Messsystem
  • Messwertklassierung mit farbiger LED-Anzeige
  • Bedien- und Anzeigeteil um 280° drehbar
  • moderne Touch Bedienung
  • robustes Display aus gehärtetem Glas
  • Optimale Konnektivität durch bidirektionale Datenschnittstelle
  • Anschlußgewinde M2,5
  • Funktionen: ON/OFF, RESET (Nullsetzen der Anzeige), TOL (Toleranzeingabe), <0> (Modus der Toleranzanzeige), mm/inch, 3xPRESET (Maßvoreinstellung), ABS (Anzeige kann auf Nul gesetzt werden ohne den Bezug zum Preset zu verlieren), DATA (in Verbindung mit Datenverbindungskabel), LOCK (individuelle Tastensperre)

Advantage
Einstellungen, individuelle Sperrfunktionen sowie Fernsteuerung kompfortabel am PC per kostenloser Software MarCom Professional

Delivery
Messuhr
Batterie (Typ CR 2450)
Schraubendreher
Bedienungsanleitung


Brand: MAHR
Length measuring range: 12,5 mm
Max. length measuring range in inches: 0,5 in
Digit increment: 0,01 mm
Digit increment in inches: 0,0005 in
Error limit: 0,02 mm
Data transmission type: Cable | Wireless
Min./max. measurement force: 0.65-0.9 N
Repeat accuracy: 0,01 mm
IP protection class: IP 42
Dynamic measurement: No
Shank diameter: 8 mm
Rotating housing: Yes
Calibration Group: CD
Other standard: Company standard
Outer diameter: 60 mm

Manufacturer part no.: 4337790

EAN no.: 4059192066581
