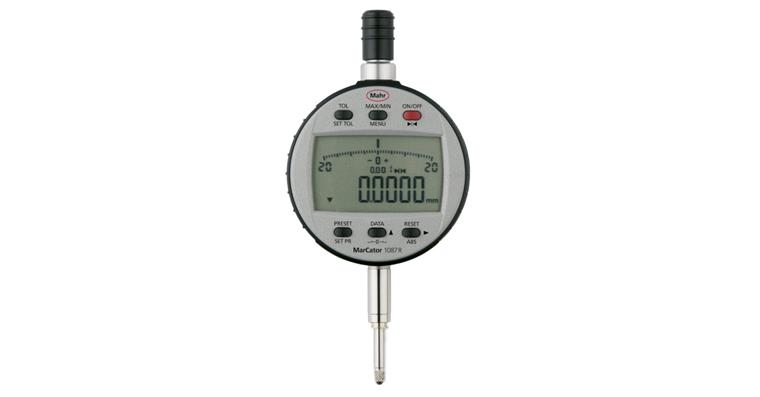

Digitale Messuhr 50 mm/0,0005 mm 1087 R

Digitale Messuhr 50 mm/0,0005 mm 1087 R

1033087203 Digitale Messuhr 50 mm/0,0005 mm 1087 R
Item no: 1033087 203

Online price:

Available in 6-8 working days.

Application
Zum Messen von Längen und Längendifferenzen, z.B. Rundlauf-, Ebenheits-, Lagemessungen.

Execution
  • Für dynamische und statische Messungen
  • Kontrastreiche LCD-Anzeige
  • Bedien- und Anzeigeteil um 280° drehbar
  • Abhebekappe am Messbolzenende
  • Einspannschaft und Messbolzen aus rostfreiem, gehärtetem Stahl
  • Sofort messbereit durch Reference-System
  • Funktionen: ON/OFF, RESET (Nullsetzen der Anzeige), mm/inch, Zählrichtungsumkehr, PRESET (Maßvoreinstellung), TOL (Toleranzeingabe), MAX/MIN Speicher zur Umkehrpunktsuche, TIR (MAX-MIN) zur Rundlauf- und Ebenheitsprüfung, ABS (Anzeige kann auf Null gesetzt werden ohne den Bezug zum Preset zu verlieren), DATA (in Verbindung mit Datenverbindungskabel), Faktor (einstellbar), LOCK (individuelle Tastensperre)

Delivery
Bedienungsanleitung
Batterie (Typ CR 2032)

Notes
Verbindungskabel siehe Art.-Nr. 1035200 404-406.

Brand: MAHR
Length measuring range: 50 mm
Max. length measuring range in inches: 2 in
Digit increment: 0,0005 mm
Digit increment in inches: 0,00002 in
Error limit: 0,007 mm
Data transmission type: Cable
Min./max. measurement force: 1.25-2.7 N
Repeat accuracy: 0,001 mm
IP protection class: IP 42
Dynamic measurement: Yes
Rotating housing: Yes
Digit height: 8,5 mm
Calibration Group: CD
Other standard: Company standard

Manufacturer part no.: 4337666

EAN no.: 4059192061449
