ATORN elec. dial gauge 100 mm meas. range 0.01 mm increment for dynamic meas.

ATORN elec. dial gauge 100 mm meas. range 0.01 mm increment for dynamic meas.

ATORN elec. dial gauge 100 mm meas. range 0.01 mm increment for dynamic meas.
Item no: 1033082 300

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Large LCD display (11 mm)
  • Read display value
  • Factor adjustable
  • mm/inch switch-over

Advantage
  • Measured value classification: Display uses coloured LEDs to indicate when tolerance limits are exceeded
  • Protection IP67 même avec câble de données

Delivery
Battery (1 x 3 V lithium type CR 2032)

Notes
Connecting cable, see art. no. 1035200 412-413.

Brand: ATORN
Length measuring range: 100 mm
Digit increment: 0,01 mm
Error limit: 20 µm
Repeat accuracy: 2 µm
Data transmission type: Proximity
IP protection class: IP 54
Min./max. measurement force: 1.8-3.8 N
Functions: Tolerance value entry | Reversal of counting direction | With zero setting at any position | Minimum / Maximum measurement | Automatic switch-on (movement of the slide/measuring bolt) | Rotatable housing  | With mm / inch switching | Automatic switch-off | Absolute function | Dynamic Measurement | Colour reading classification | Preset function
Connection thread: M2.5
Number of batteries x name of batteries: 1 Stck(pcs) x 3V CR2032 Lithium

ATORN-No.: 31120021

EAN no.: 4050293353297

User Manual Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • ATORN threading die HSSE M4 0.7 mm 20 mm 6g 22568
  •
    Label tape cassette for Dymo tape length 7 m tape width 12 mm red/white
  •

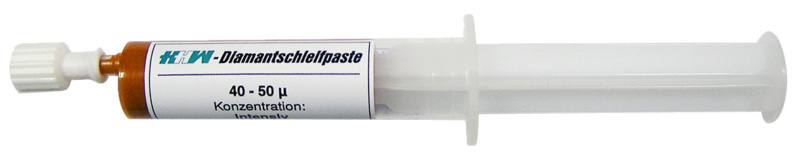

    Diamond polishing paste colour orange content 20 ml grit 40-50 µ
  •
