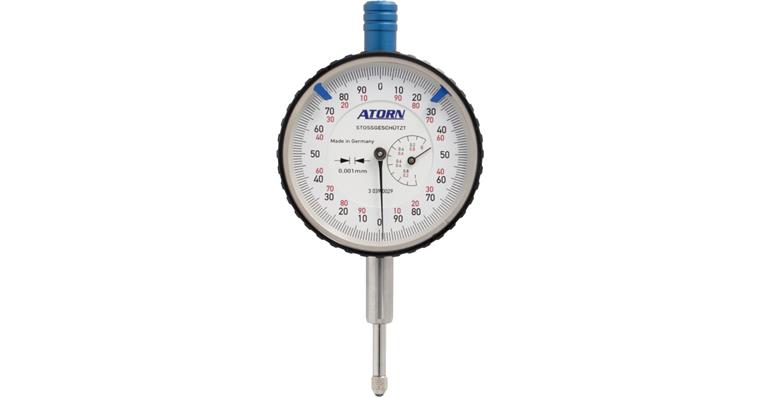

ATORN precision dial gauge dia. 58 mm graduation 0.001 mm meas. range 1 mm

1033024502 ATORN precision dial gauge dia. 58 mm graduation 0.001 mm meas. range 1 mm
Item no: 1033024 502

Online price:

Available for immediate delivery
Buy now

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Measuring pin and clamping shank are made of durable stainless steel
  • Tolerance marks for clear identification of the set tolerance fields
  • Comfortable lifting sleeve with additional dust protection function

Advantage
Gauge slide with ceramic ball (minimum wear, not electrically conductive)

Delivery
in a case


Brand: ATORN
Length measuring range: 1 mm
Scale value: 0,001 mm
Error limit: 5 µm
Measurement travel of one pointer revolution: 0,2 mm
Free stroke: 4 mm
Outer diameter: 58 mm
Shock protection: Yes
Material of outer ring: Metal
Rotating housing: Yes
IP protection class: IP 40
Measurement force: 1,4 N
DIN: 878

ATORN-No.: 30390029

EAN no.: 4066107038632

Product Datasheet
