Digitale Messuhr ID-S, 12,7 mm, 0,001 mm flach, IP42, ISO

Digitale Messuhr ID-S, 12,7 mm, 0,001 mm flach, IP42, ISO

Digitale Messuhr ID-S, 12,7 mm, 0,001 mm flach, IP42, ISO
Item no: 1033019 107

Online price:

Still in stock: 3

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • ABSOLUTE system. One-time setting of the starting position, which then remains the absolute zero point until the next battery change
  • All functions can be adjusted using large and user-friendly buttons
  • Mühelose Ablesung durch 9 mm große Ziffern
  • Funktionen: ON/OFF, ORIGIN (ABS Nullpunkt), Zählrichtung umkehrbar, Digimatic Datenausgabe

Notes
This digital dial gauge is equipped with a data output, but does not feature an integrated data button. The USB Input Tool Direct cable (optional accessory) and the USB-ITPAK software are required for data transfer.

Brand: MITUTOYO
Length measuring range: 12,7 mm
Type: flache Rückwand - ISO
Digit increment: 0,001 mm
Error limit: 0,003 mm
Data transmission type: Cable | Bluetooth | Wireless
Repeat accuracy: 0,002 mm
IP protection class: IP 42
Dynamic measurement: No
Shank diameter: 8 mm
Digit height: 9 mm
Calibration Group: CD
Outer diameter: 59 mm

Manufacturer part no.: 543-790B-10

EAN no.: 4946368863320

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Saw belt Basic Fit M42 2,455 x 27 x 0.9 mm 8/11
  •
    Saw belt Basic Plus M42 2,750 x 27 x 0.9 mm 3/4
  •
    Saw belt Basic M42 3,090 x 27 x 0.9 mm 6/10
  •
    Chemikalienschrank 640 x 400 x 1950 mm CS Eco 640 P
  •
    Endless sanding belt corundum grain 60 100x1000 mm
  •
    Saw belt Basic Fit M42 3,110 x 27 x 0.9 mm 8/11
  •
    Saw belt Basic M42 3,320 x 27 x 0.9 mm 5/8
  •
    Saw belt Basic Plus M42 3,830 x 27 x 0.9 mm 2/3
  •
    Saw belt Basic Plus M42 4,900 x 34 x 1.1 mm 4/6
  •

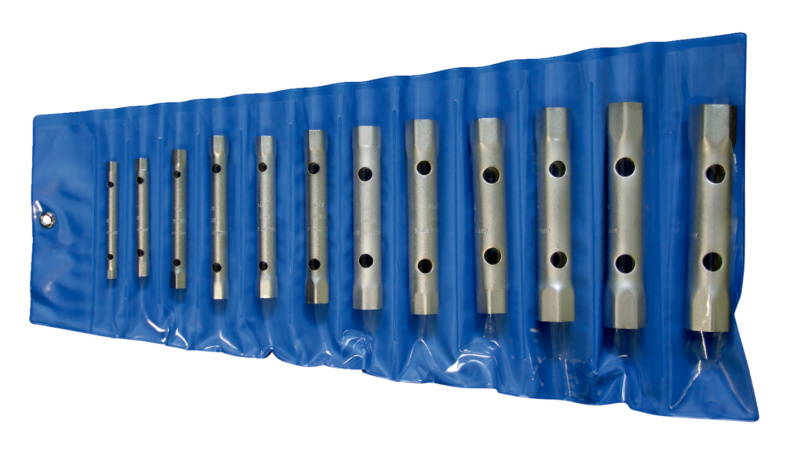

    Hexagon socket wrench set DIN 896 B hardened 12 pieces AF 6x7–30x32 mm in bag
  •
