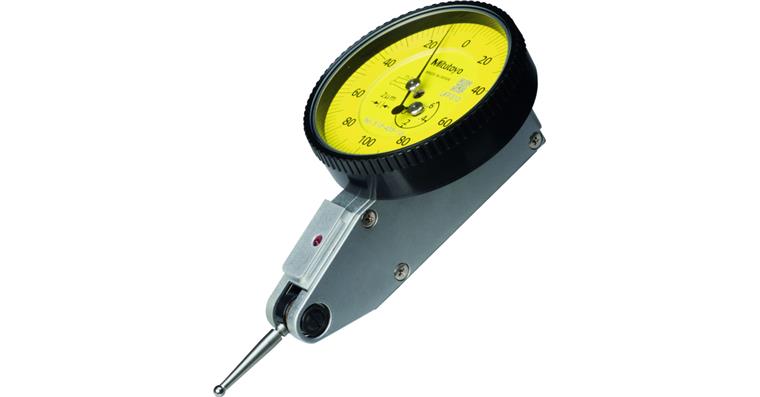

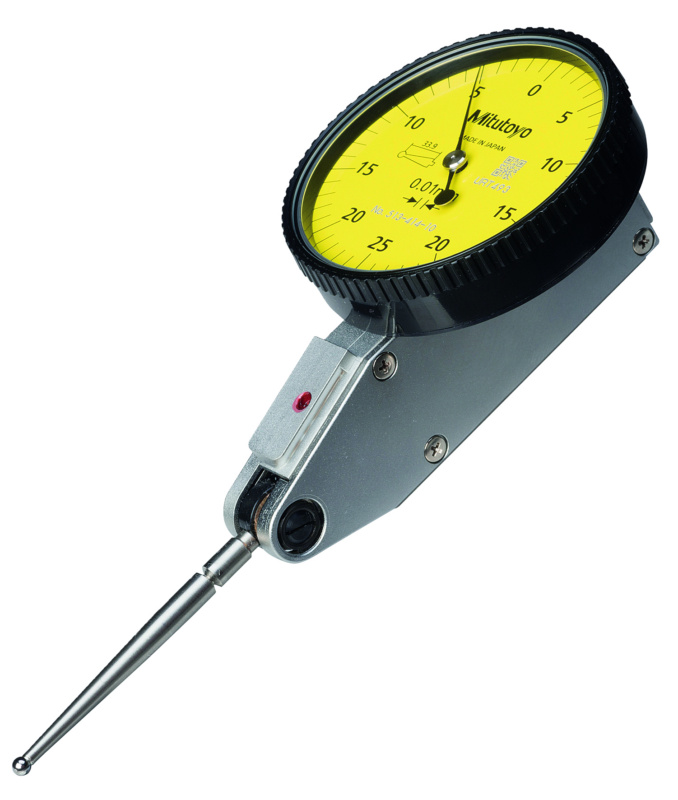

Lever gauge probe measuring range 0.6 mm pitch 0.002 mm basic set

Lever gauge probe measuring range 0.6 mm pitch 0.002 mm basic set

1033018503 Lever gauge probe measuring range 0.6 mm pitch 0.002 mm basic set
Item no: 1033018 503

Online price:

Available in 11-13 working days.

Application
For measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring shafts and boreholes and aligning workpieces.

Execution
  • Glare-free, flat dial face for easy reading
  • The improved placement of the O-ring seal enables easy rotation of the dial face whilst protecting the scale from the ingress of dust and oil
  • Multi-layer coating on dial face
  • Accuracy in accordance with factory standard

Delivery
1x dial test indicator
1x clamping shank dia. 8 mm
1x box


Brand: MITUTOYO
Length measuring range: 0,6 mm
Type: Standardausführung
Scale value: 0,002 mm
Diameter: 40 mm
Length of measuring sensor from centre of ball: 18,7 mm
Min./max. measurement force: 0.01-0.4 N
Error limit: 0,007 mm
Connection thread: M1.7
Material of measuring ball: Carbide
Ball diameter: 2 mm
Calibration Group: L

Manufacturer part no.: 513-425-10E

EAN no.: 4946368676296

Product Datasheet
